Factory Tested Capsule Slip Ring with Traceability

Factory Tested Capsule Slip Ring with Traceability

Place of Origin China
Brand Name CENO
Certification CE,RoHS,UL,ISO9001
Model Number ACN35-06P-24S-03EM
Product Details
Protection Rating:
IP40
Operating Humidity:
Below 60% RH
Operating Temperature:
–40°C To +60°C
Wire Specifications:
AWG 17#/14#/28# Tinned Teflon® Wire @ UL; Two-core Twisted Shielded Pair (AWG 26#); CAT6
Operating Voltage:
0–280 VAC/VDC
Current Per Ring/Channel:
2 Circuits × 20 A (at 28 V); 2 Circuits × 15 A (at 28 V); 2 Circuits × 10 A (at 28 V); 24 Signal Circuits; 3 Sets Of 100 Mbps Ethernet
Dielectric Strength:
≥300 VAC @ 50 Hz Between Any Two Circuits
Insulation Resistance:
≥100 MΩ @ 250 VDC
Contact Resistance Variation:
≤30 MΩ (measured At 50 Rpm)
Lead Wire Length:
Rotor: 500 Mm; Stator: 300 Mm
Operating Speed:
0–100 Rpm
Mounting Method:
Rotor End Secured To The Customer-supplied Spindle With Screws
Contact Material:
Precious Metal
Housing Material:
Aluminum Alloy, Sandblasted And Black
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
Off the shelf
Payment Terms
T/T,Paypal,Western Union,L/C
Supply Ability
10000pcs month
Product Description

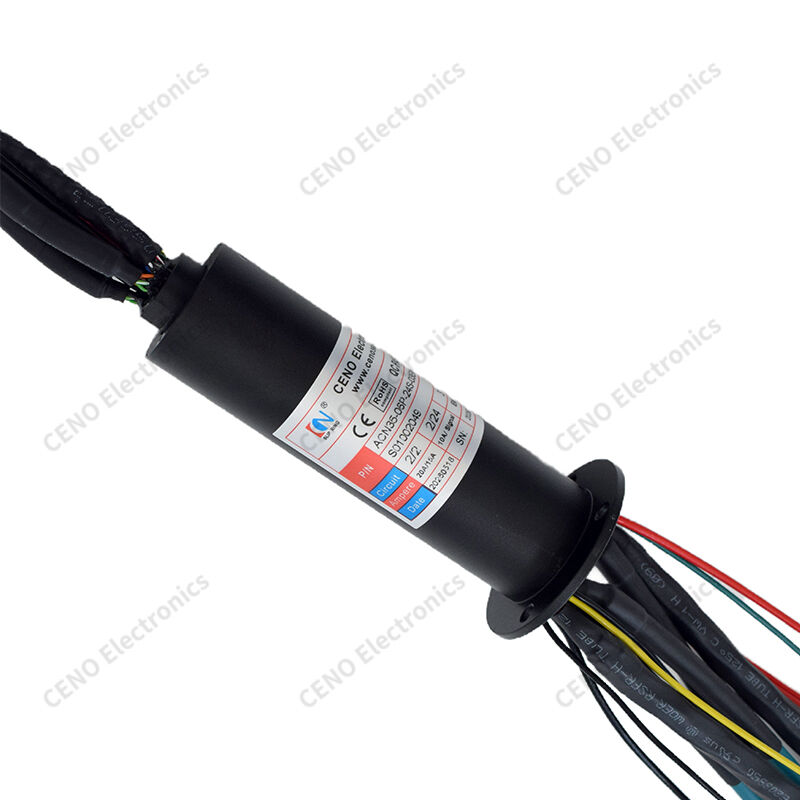

Factory Tested Capsule Slip Ring with Traceability


ACN35-06P-24S-03EM  is CENO  capsule‑type slip ring enables continuous 360‑degree unlimited rotation to transfer power and control signals without wire tangling or breakage. Built‑in precious‑metal contact pairs deliver stable electrical performance for mass‑volume OEM equipment integration. Each unit undergoes full‑range factory testing with unique SN traceability. UL‑approved high‑temperature wires are equipped. Standard models are available, alongside flexible custom solutions for wholesale buyers, widely deployed across rotating machinery and automation systems.


Features

  • Precious‑metal contacts
  • Low torque rotation
  • Batch consistency
  • SN traceability
  • High insulation
  • Low resistance drift

Applications

  • Pan‑tilt platforms
  • Robotic assemblies
  • Rotary worktables
  • Amusement machines
  • Test instruments
  • Automation equipment

Optional

  • Custom channel count
  • Modified cable length
  • Higher current rating
  • Private label marking
  • Special signal integration
  • Extended speed tuning


Specification


ACN35-06P-24S-03EM

Specification

Protection Rating

IP40

Operating Humidity

Below 60% RH

Operating Temperature

–40°C to +60°C

Wire Specifications

AWG 17#/14#/28# tinned Teflon® wire @ UL; two-core twisted shielded pair (AWG 26#); CAT6

Operating Voltage

0–280 VAC/VDC

Current per Ring/Channel

2 circuits × 20 A (at 28 V); 2 circuits × 15 A (at 28 V); 2 circuits × 10 A (at 28 V); 24 signal circuits; 3 sets of 100 Mbps Ethernet

Dielectric Strength

≥300 VAC @ 50 Hz between any two circuits

Insulation Resistance

≥100 MΩ @ 250 VDC

Contact Resistance Variation

≤30 mΩ (measured at 50 rpm)

Lead Wire Length

Rotor: 500 mm; Stator: 300 mm

Operating Speed

0–100 rpm

Mounting Method

Rotor end secured to the customer-supplied spindle with screws

Contact Material

Precious metal

Housing Material

Aluminum alloy, sandblasted and black anodized


Outline drawing

Factory Tested Capsule Slip Ring with Traceability


 Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification
ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
