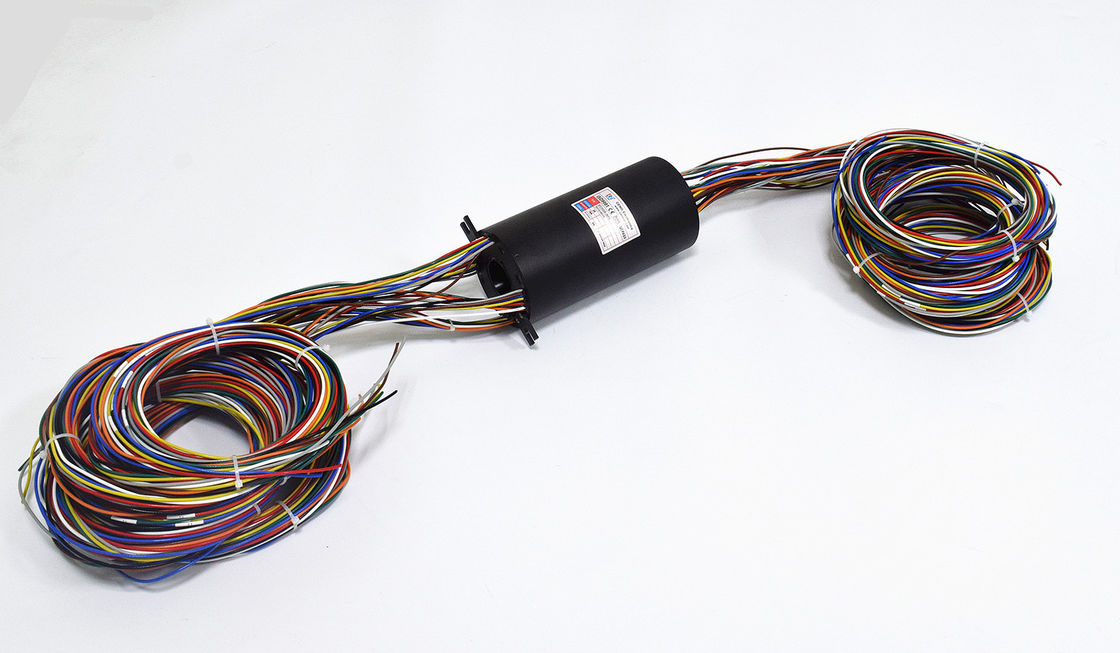

380 VAC Through Bore Electrical Slip Ring With Lead Wire Length 4000mm

ID 38.1mm Through Bore Slip Ring At Competitive Price With Lead Wire Length 4000mm

A standard through hole slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.

Below is the slip ring's flange mounting way


1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

Characteristic

• Support power and signal transmitting

• Reliable Contact ,stable performance
• Compact size, low torque ,low contact resistance

Optional

• Circuit number
• Protection grade
• Signal type

Application

• Automation Equipment
• Antenna

Specification

ECN038-36P3                  Specification		Picture
Current	36*15A
Through hole size	Ø38.1mm
Protection Grade	IP54
Working speed	0~300rpm
Contact material	Precious metal
Rating Voltage	380VAC
Lead Wire Size	AWG 14#
Lead Wire Length	4000mm

Outline drawing

Why CENO

CENO is one technology company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24/7 consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
