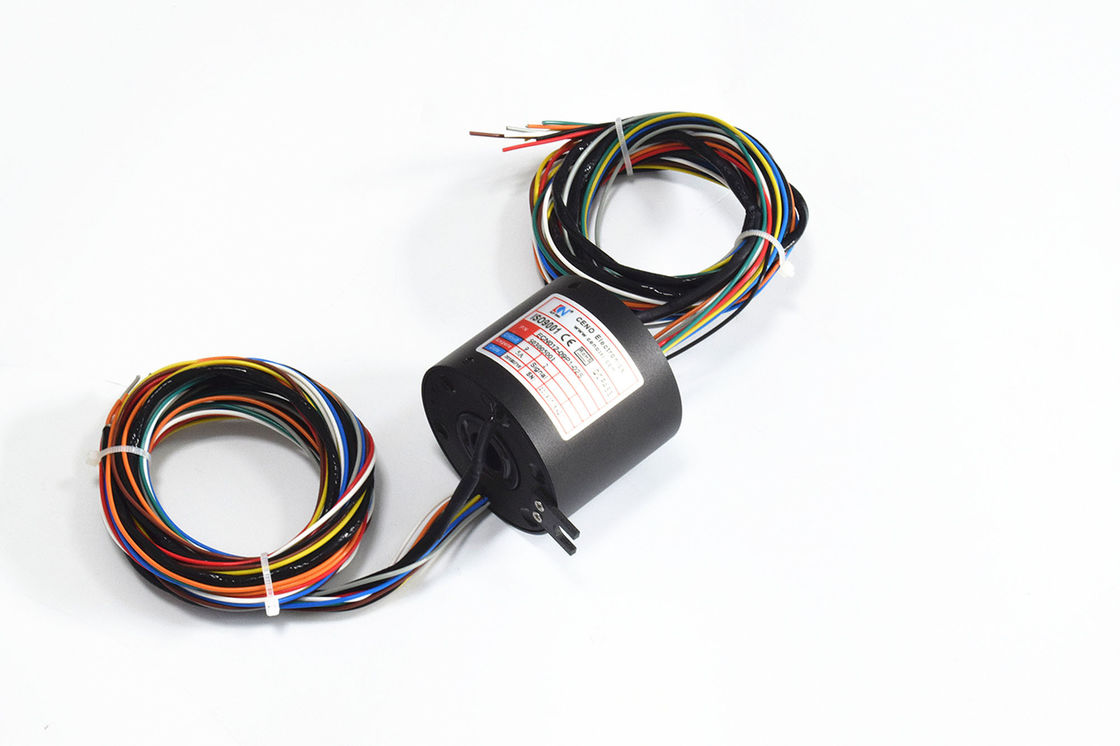

Electrical Through Hole Slip Ring Transmit Power 2 Group CAN Signal 220VAC

Electrical Through hole Slip Ring Transmit Power And 2 Group CAN Signal

This is for engineering machinery slip ring with through hole size 12.7mm, it transmits two circuits CAN Profit Bus signal and other ordinary current, housing material is aluminum alloy. Engineering machinery slip ring is developed by CENO electronics For mechanical equipment.

Features

• Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
• Adapt to dusty and exposed working environment
• Transmit data and analog signal,compatible with data bus protocol

Applications

• Radar antenna
• Construction engineering
• Package equipment
• Engineering machinery

Optional

• Through hole size
• Circuit number
• Installation way
• IP protection grade

Specification

ECN012-09P1-02S  Specification		Picture
Current	9*5A,2*CAN signal
Voltage	220VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000V@50Hz(power) ≥500V@50Hz (signal)
Insulation resistance	≥500MΩ@500VDC(power) ≥300MΩ@100VDC (signal)
Operating speed	0-300 rpm
Contact material	precious metals
Operating temperature	-20~+80℃
Through bore size	12.7mm
IP protection grade	IP54

Outline drawing

Reduce costs
Improve manufacturing efficiency. You asked, we delivered.CENO Electronics offers high-performance 360° rotation solutions,
refined over years of helping customers with thousands of system designs in hundreds of industries.

How do you determine which is best for you?
Step one: Reference our slip ring products parameter chart, a matrix showing the key performance for CENO's products.
Keep in mind that if you don’t see the device needed for your project, we can work together on a derivative or a full custom device to fit your needs.
Step two: Fill out the custom form with necessary specification info, so we will be able to provide an evaluation solution, quote or more information on how we can make required slip ring easier.

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
