| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-08P3-32S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current: | 8*16A, 32* Signal | Through Bore Size: | Solid Through Bore |
|---|---|---|---|
| Protection Grade: | IP51 | Working Speed: | 0~100 Rpm |
| Contact Material: | Precious Metal | Rating Voltage: | 0~300VAC/VDC |
| Housing Material: | Aluminium Alloy | Working Temperature: | -30C°~ +80C° |
| Application: | Oil Well ,crane | ||
| High Light: | IP51 electrical slip rings,100rpm electrical slip rings,300VAC electrical slip rings |
||

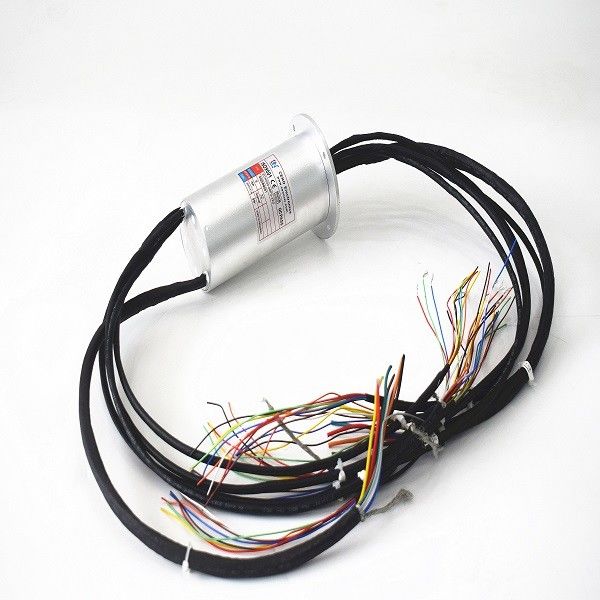

Solid Through Bore IP51 Electrical Slip Rings Compact Structure
Solid through bore slip ring with 8*16A & 32* signal,compact structure. working temperature -30°C ~ +80°C.Low torque
The ECN series electrical through bore slip ring is a rotating assembly used to transfer power, control circuits or data from stationary inlets to rotating outlets.This type is a solid through bore slip ring with 8 rings *16A & 32 rings * signal,compact structure. working temperature range from -30°C ~ +80°C . It’s also can integrate various signals such as fiber optic,HDMI,USB, Ethernet, Canbus , servo signals. Through bore size and IP protection grade can be optional .Typical application including packaging machine,Military industry ,Marine industrial equipment,Automatic winding machine,Lithium battery equipment,Industrial automation equipment.
Specification
| ECN000-08P3-32S | Specification |
| Circuits & Current | 8*16A, 32* signal |
| Voltage | 0~300VAC/VDC |
| Electrical noise | Max 30mΩ (50rpm) |
| Dielectric strength |
≥1000V@50Hz (power) ≥500V@50Hz (signal) |
| Insulation resistance |
≥500MΩ@500VDC (power) ≥300MΩ@100VDC (signal) |
| Operating speed | 0-100 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP51 |
| Through hole size | Solid bore |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
