| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN025-10P4-02S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Circuits & Current: | 10circuits * 20A; 1circuit * Signal | Rating Voltage: | 0~24V0AC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz ≥300VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC ≥100MΩ@300VDC |
| Contact Resistance: | 30mΩ (50rpm) | Contact Material: | Precious Metal / Gold To Gold |
| Housing Material: | Aluminum Alloy | Working Temperature: | -20°C~+60°C |
| Working Humidity: | 60%RH | IP Protection Grade: | IP50 |
| Operating Speed: | 0~200rpm | Lead Wire Size: | AW12# Wire Teflon® UL K-Thermocouple Cable |
| Lead Wire Length: | Rotor : 2500mm Stator : 5000mm | Inner Diameter: | Ø25mm |
| External Diameter: | Ø86mm | Rotation Way: | Fix Up Sator Side With Anti-rotation Side Shaft Drives Rotor Running |
| High Light: | ID 25mm Through Hole Slip Ring,10 Circuits Through Hole Slip Ring,Automatic machine Through Hole Slip Ring |
||

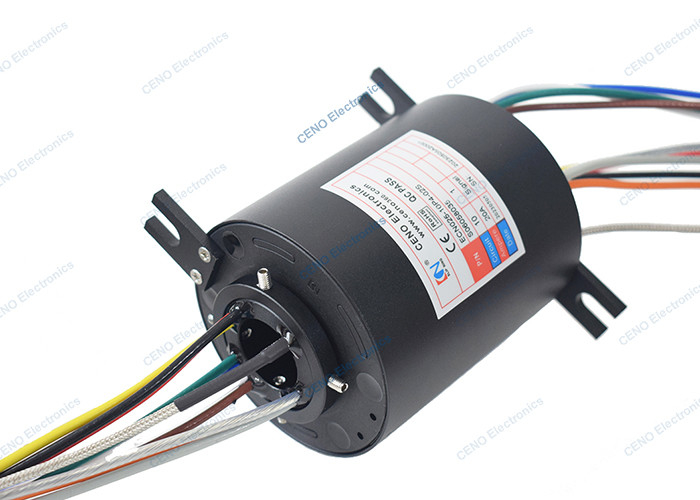

Through Hole Slip Ring With ID25mm & 10circuits Rotary Electrical Joint
ECN025-10P4-02S is CENO’s new design Through Hole Slip Ring with inner diameter 25mm, and 10circuits for 20A, 1circuit for Signal, it’s also named Hollow Shaft Slip Ring, Electrical Collector, conductor ring or Rotary electrical Joint. Due to it’s stable performance often applied to the harsh environment such as the mines, mountain areas and the oilfield. Through hole slip ring is a kind basic slip ring in CENO, can combine various electrical signal, data or different technical to become many kinds slip ring, as the Function slip ring, Signal Slip Ring, Fiber Optical Rotary Joint, RF rotary Union, even Pneumatic / Hydraulic Slip Ring etc. For more information about how CENO Slip Ring can fit your specific environment, please contact us.
Features
Applications
Optional
Specification
|
ECN025-10P4-02S |
Specification |
| Current & Circuits | 10circuits * 20A; 1circuit * Signal |
| Rating Voltage |
0~240VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC ≥100MΩ@300VDC |
| Contact material | Precious metal / Gold to Gold |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP50 |
| Operating speed | 0~200rpm |
| Lead wire size |
AW12# Wire Teflon® UL K-Thermocouple cable |
|
Lead wire length |
Rotor : 2500mm Stator : 5000mm |
| Inner diameter | Ø25mm |
| Rotation way | Fix up sator side with anti-rotation side shaft drives rotor running |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
