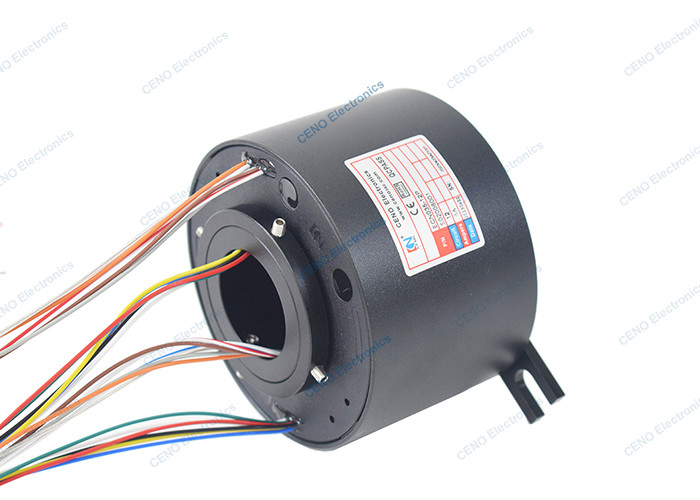

Name: IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector
Brand: CENO
SKU: ECN035-12P
Rating: 4.8 (147 reviews)

Home Products Through Hole Slip Ring

IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector

Product Details:

Place of Origin:	China
Brand Name:	CENO
Certification:	CE,RoHS,ISO9001,UL
Model Number:	ECN035-12P

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Carton/As request
Delivery Time:	1 week
Payment Terms:	T/T,Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Circuits & Current:	12circuits*6A	Rating Voltage:	0~380VAC/VDC
Dielectric Strength:	≥1000VAC@50Hz	Isolation Resistance:	≥500MΩ@500VDC
Contact Resistance:	70mΩ (50rpm)	Contact Material:	Precious Metal
Housing Material:	Aluminum Alloy	Working Temperature:	-20°C~+60°C
Working Humidity:	60%RH	IP Protection Grade:	IP54
Operating Speed:	0~300rpm	Lead Wire Size:	AW22# Wire Teflon® UL
Lead Wire Length:	Rotor : 1000mm Stator : 300mm	Inner Diameter:	Ø35mm
External Diameter:	Ø99mm	Rotation Way:	Fix Rotor Side On The Main Shaft With Screws
High Light:	IP54 Hollow Shaft Slip Ring , Through Hole Hollow Shaft Slip Ring , ID 35mm Through Hole Slip Ring

Hollow Shaft Slip Ring With Through Hole ID35mm Electrical Collector

ECN035-12P is CENO’s new designed Through Hole Slip Ring with ID35mm and 12circuits for electrical collector for industrial automatic system. As a basic slip ring Through hole slip ring often combine kinds data and other signals to a integrated slip ring, such as compatible with Pneumatic Hydraulic Rotary Union, RF Rotary union, FORJ or other signal as the Ethernet, profi-bus, Encoder and HDMI etc. Through hole slip ring is more economical and working stably comparing with other integrated slip ring, Usually apply to the harsh environment, for more information about How CENO’s slip ring can fit your applications, please contact us.

Features

Quiet mechanical system work
Can be integrated different data, signals & Pneumatic/Hydraulic
Stable performance, install easy

Applications

Automatic machinery
Electrical Crane
Electric Winch
Offshore Equipment

Optional

Circuits & Current
Contact / Housing Materials
IP Grade
Working speed

Specification

ECN035-12P	Specification
Current & Circuits	12 circuits * 6A
Rating Voltage	0~380VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance	70mΩ (50rpm)
Contact material	Precious metal
Housing material	Aluminum Alloy
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP54
Operating speed	0~300rpm
Lead wire size	AW22# Wire Teflon® UL
Lead wire length	Rotor : 1000mm Stator : 300mm
Inner diameter	Ø35mm
External diameter	Ø99mm
Rotation way	Fix rotor side on the main shaft with screws

Outline Drawing

IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector 0

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
