380VAC Through Bore Slip Ring
  • 380VAC Through Bore Slip Ring
  • 380VAC Through Bore Slip Ring
  • 380VAC Through Bore Slip Ring
  • 380VAC Through Bore Slip Ring

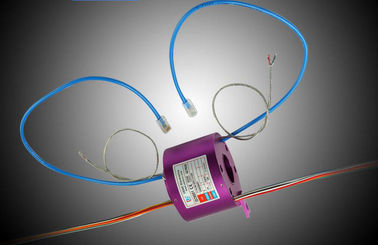

380VAC Through Bore Slip Ring

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN025-1815-08S-02E2
Product Details
Current:
18 * 15A ; 8 * Signal ; 2 * 100M Ethernet Signal
Installation Way:
Frank
Protection Grade:
IP54
Working Speed:
0~300rpm
Contact Material:
Precious Metal
Rating Voltage:
380VAC
High Light:

wire slip ring

,

cable slip ring

,

380VAC Through Bore Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
500pcs per month
Product Description

2 Group Ethernet Signal With Improved Signal To Noise Ratio Feature Electrial Slip Ring



The model ECN025-1815-08S-02E2 ,it has 18 circuits number with 15Amp per circuit and 8 signal two group 100M Ethernet signal,
It combines the characteristics of through hole slip ring and Ethernet signal,centre hole diameter is 25.4mm convenient to install ,as well as integrate fiber optic ,RF rotary joint.On both the stator and rotor for simplified electrical connections with RJ 45 connector for directly plug.







Features


◆ Ethernet signals meet protocol requirements
◆ Integrate various signal and power

◆ Improved signal -to- noise ratio





Applications


◆ Simulator
◆ Automatic equipment





Optional
◆ Circuit number
◆ Ethernet signal size
◆ Installation way
◆ Signal type





Specification



Parameter
Circuit 18 * 15A ; 8 * signal ;
2 * 100M Ethernet signal
Protection Grade IP54
Voltage 380VAC Temperature -20°C~+60°C
Insulation Resistance

500MΩ@500VDC(current)

100MΩ@100VDC(signal)

Rotating speed 0~300rpm
Dielectric Strength

≥1000V@50hz(current)

≥500 V@50hz(signal)

Contact Material Precious metal
Electrical Noise ≤70mΩ(by50rpm) Housing material Aluminum alloy sandblasting oxidation black
Humidity <60%RH Installation way Frank




Outline Drawing




380VAC Through Bore Slip Ring 0







Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
