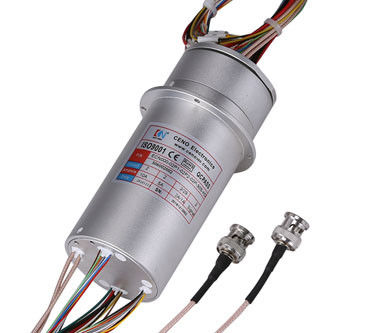

HD SDI HDMI Slip Ring Combine , Signal Channel Power Slip Ring Low Contact Resistance

HD SDI HDMI Slip Ring Combine , Signal Channel Power Slip Ring Low Contact Resistance

  • HD SDI HDMI Slip Ring Combine , Signal Channel Power Slip Ring Low Contact Resistance
  • HD SDI HDMI Slip Ring Combine , Signal Channel Power Slip Ring Low Contact Resistance
  • HD SDI HDMI Slip Ring Combine , Signal Channel Power Slip Ring Low Contact Resistance
  • HD SDI HDMI Slip Ring Combine , Signal Channel Power Slip Ring Low Contact Resistance
HD SDI HDMI Slip Ring Combine , Signal Channel Power Slip Ring Low Contact Resistance
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN000-02P1-02P2-02P-30S-HD
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Housing Material: Aluminum Alloy Channel Number: 37
Signal: HD-SDI,video Signal Currrent Rating: 5Amp,10Amp,1Amp
High Light:

small slip ring

,

coaxial slip ring

,

HD SDI HDMI Slip Ring Combine

HD-SDI Slip Ring HDMI Slip Ring Combine Power Signal Channel



The high definition slip ring includes SDI high resolution and HDMI, which transmits electrical signals ,video signals and high-speed digital signals to meet EMC (Electro Magnetic Compatibility) requirements. CENO’S HD slip ring adopts domestic leading military technology, it has the advantages on transmission stability, attenuation loss of signal and ultra-low transmission fluctuation.







Feature

  • It can support video standard of 2K@90Hz, no flicker screen and losing frame
  • Gold - gold contact point to guarantee extending working lifespan
  • Low contact resistance, compact size, low torque, reliable operation



Application

  • HDMI Security system
  • Infrared photography,High definition PTZ
  • Photooelectric pod, Radar antenna





Specification



Parameter
Circuit

2*10A,2*5A,2*2A,29*1A,1*video,

1*(HD-SDI)

Protection grade IP54
Voltage 380VAC Working temperature -40°C ~ + 80°C
Insulation

500 MΩ@300VDC(power),

100 MΩ@300VDC,(signal)

Rotating speed 0~30rpm
Dielectric strength

≥500V@50hz(power)

≥300V@50hz(signal)

Contact material Gold to gold
Electric noise ≤60%RH Housing material Aluminum alloy oxidation white



Outer drawing



HD SDI HDMI Slip Ring Combine , Signal Channel Power Slip Ring Low Contact Resistance 0

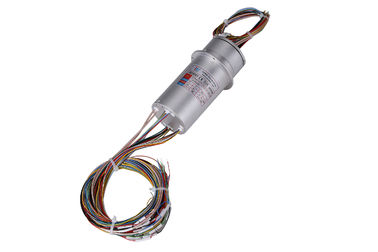

Product picture

HD SDI HDMI Slip Ring Combine , Signal Channel Power Slip Ring Low Contact Resistance 1







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

HD SDI HDMI Slip Ring Combine , Signal Channel Power Slip Ring Low Contact Resistance 2



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
