Radio Frequency Rotary Joint
>
|
| Place of Origin | China |
| Brand Name | CENO |
| Certification | CE,RoHS,ISO9001,UL |
| Model Number | RCN0303A |

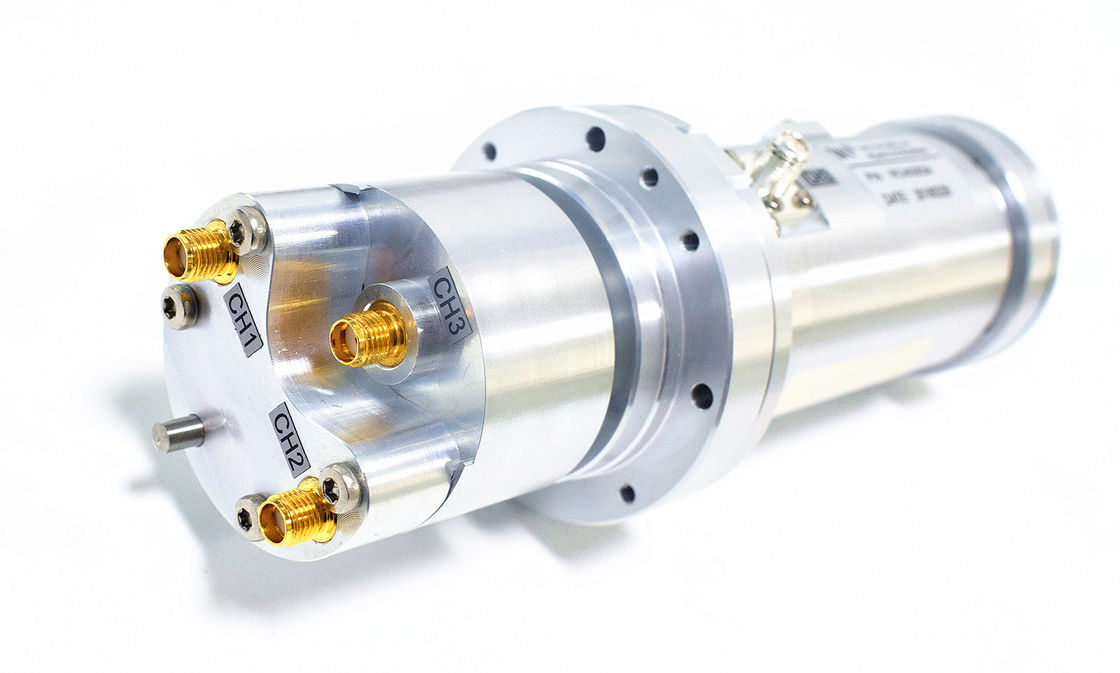

3 Channel RF Electric Slip Ring SMA Female For Radar And Traffic Control System
RF rotary joint design adopts the principle
of skin effect of high frequency signal and the structure simulation of coaxial cable.
Divide into high frequency rotary joint,middle and low frequency rotary joint according to
frequency range.they can support high frequency signal and power,or some other signal
combined transmission.
Feature:
1. Up to 50 GHz transmission frequency, channel number is as high as 5 channels
2. To support the high frequency signal and the low voltage DC signal transmission at the same time.
3. Can be integrated with other electrical slip ring, hybrid transmission of high frequency signals, current and other types.
Widely used in radar antenna, high definition video transmission, electro-optical pod system, etc.
4.Compact structure,strong anti-interference ability
We offer standardized & modularized design and fully customizable products according
to the special requirements of customers in different applications. If you have specific
customized requirements, please feel free to consult us in order to create the most suitable
recommendation for your specification.
Typical Applications
◆Traffic control system
◆Radar system
◆Simulation tester
Specification
| RCN0303A Specification | Picture | |||
| Channel 1 | Channel 2 | Channel 3 | |
|
| Connector | SMA-f(50Ω)/copper alloy /gold plated | SMA-f(50Ω)/copper alloy /gold plated | SMA-f(50Ω)/copper alloy /gold plated | |
| Frequency range | 0 to 3GHz | 0 to 3GHz | 0 to 3GHz | |
| Interface type | Style I | Style I | Style L | |
| Peak Power, Max. | 1KW | 1KW | 1KW | |
| Insertion loss,max | 0.4 dB | 0.7 dB | 0.4 dB | |
| Rotating speed,max | 60rpm | |||
| IP protection grade | IP50 EN60529 | |||
| weight | 0.7Kg | |||
