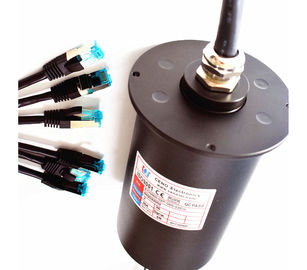

3 Channel Gigabit Ethernet Cable Slip Ring With Frank Installation Way
Ethernet slip ring specailly designed for 250Mhz frequency to transmit
100M/1000M Ethernet signals,up to eight Ethernet channels can be transmitted simultaneously ,with advantages of reliable transmitting,no package loss,no cross talk,low loss,combine various signal and power with RJ45 connector to use.
Features
◆ Transmit100M/1000M ether net
◆ Integrate various signal and power,comply with EMC
◆ reliable transmitting,no package loss,no cross talk,low loss
◆ Ethernet signals meet protocol requirements
◆ Improved signal -to- noise ratio
Applications
◆ Automation equipment
◆ Motion simulator
◆ Lithium battery equipment
Optional
◆ Circuit number
◆ Current rating
◆ Installation way
◆ Signal type
Specification
| Parameter | |||
| Circuit | 2 * 20A ; 9 * signal ; 3 * Gigabit Ethernet cable; |
Protection Grade | IP54 |
| Voltage | 380VAC | Temperature | -20°C~+60°C |
| Insulation Resistance |
500MΩ@500VDC(current) 100MΩ@100VDC(signal) |
Rotating speed | 0~300rpm |
| Dielectric Strength |
≥1000V@50hz(current) ≥500 V@50hz(signal) |
Contact Material | Precious metal |
| Electrical Noise | ≤70mΩ(by50rpm) | Housing material | Aluminum alloy sandblasting oxidation black |
| Humidity | <60%RH | Installation way | Frank |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
