Detailed Product Description
Frequency Range: DC-5GHz(2 Channels) Insertion Loss: ≤0.25dB(0.05) ;≤0.3dB(0.15)
Current: 2* 25A,6*signal,2*RF Rotating Speed Max: 0~50rpm
Rating Voltage: 48VAC IP Protection: IP54
High Light:

rf coaxial rotary joint

,

microwave rotary joint

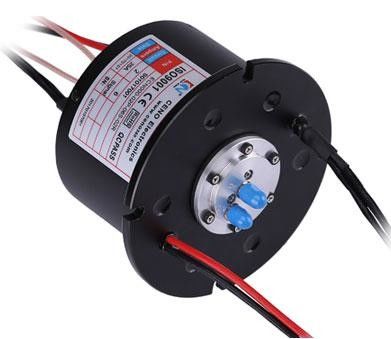

Frequency Range DC-5GHz RF Rotary Joint With Power And Signal For Radar Equipment



RF rotary joint design adopts the principle of skin effect of high frequency signal and the structure simulation of coaxial cable. To ensure RF rotary joint with the high frequency signal low damage and reliable transmission,CENO uses import high elastic wear-resisting material in the internal key contact point of the RF rotary joint and do special plating in the surface for it. It is a connector device to transmit high frequence signal from the static to rotating part.





Features

  • Stable performance and high reliability
  • Integrated RF rotary joint
  • Compact size,high integration level



Applications



  • Radar equipment
  • Antenna system



Optional

  • Circuit number
  • Frequency Range
  • Current rating
  • Various signal type
  • Dimensions can be customized



Specification



Parameter
Circuit 2* 25A,6*signal,2*RF Protection grade IP54
Rating voltage 48VAC Working temperature -40°C ~ + 80°C
Resistance insulation 300 MΩ@300VDC Rotating speed 0~50rpm
Dielectric strength

≥1000V@50hz(Power)

≥300 V@50hz(signal)

Contact material Precious metal
Electric noise ≤ 70 mΩ(50 rpm) Housing material Aluminum alloy oxidation black
Working humidity ≤60%RH Installation way Stator will be fixed axis of equipment by screw
RF rotary joint technology data
Frequency range DC-5GHz(2 channels) Interface type 3.5mm-f SMA(50Ω)
Insert lost and changing

≤0.25dB(0.05)

≤0.3dB(0.15)

Standing wave ratio and variation

≤1.18(0.04)

≤1.5(0.16)

Cable Spec 1500W/1500W Cable length

60W@5GHz

50W@5GHz





Outline drawing
