Place of Origin: | China |
Brand Name: | CENO |
Certification: | CE,RoHS,ISO9001,UL |
Model Number: | ECN025-10P2-04S-02EG |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton/As request |
Delivery Time: | 1 week |
Payment Terms: | T/T,Paypal, Western Union |
Supply Ability: | 500pcs per month |
Current: | 10*10A ,4 *signal ,2 *Gigabit | Through Hole Size: | Ø25.4mm |
---|---|---|---|
Protection Grade: | IP54 | Working Speed: | 0~300rpm |
Contact Material: | Precious Metal | Rating Voltage: | 380VAC/24VAC |
High Light: | wire slip ring,electrical swivel joint,300rpm Wire Slip Ring |

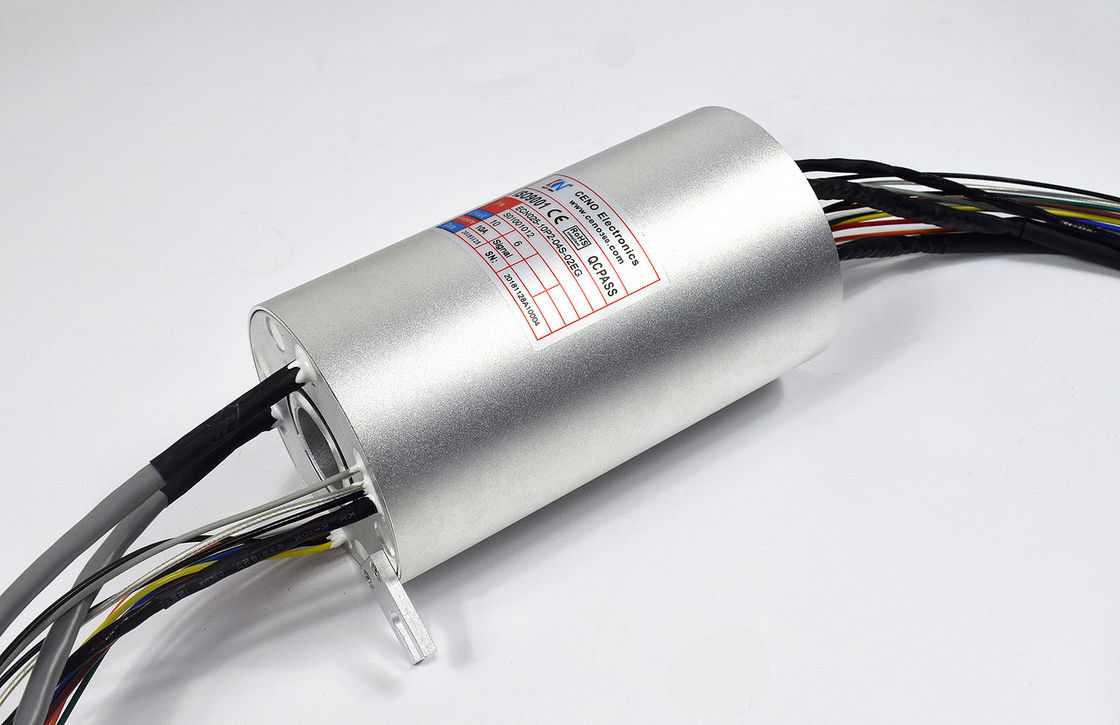

2 Group Ethernet Signal Slip Ring Stable Transmission No Package Loss
Ethernet slip ring specailly designed for high frequency to transmit 100M/1000M Ethernet signals,with advantages of reliable transmitting,no packet loss,no string code,low return loss, low insertion loss.
CENO has developed signal slip ring with Gigabit Ethernet signal character base on market requirement.The Ethernet slip ring comply with EMC compatibility and meet the requirement of Signal impedance matching, to make sure transmission low loss, no error code,long distance transmission. CENO Ethernet slip ring transmission distance could up to 1000Mbps , or over this speed. It could integrate another current and signal into one slip ring for different customer’s requirement.
Features
◆ Ethernet signals meet protocol requirements
◆ Integrate various signal and power
◆ Stable transmission,no package loss,no cross talk,low loss
Applications
◆ Lithium battery equipment
◆ Automatic equipment
Optional
◆ Circuit number
◆ Ethernet signal size
◆ Installation way
◆ Signal type
Specification
Parameter | |||
Circuit | 10*10A ,4 *signal ,2 *Gigabit | Protection Grade | IP54 |
Voltage | 380VAC/24VAC | Temperature | -20°C~+60°C |
Insulation Resistance |
500MΩ@500VDC(current) 100MΩ@100VDC(signal) |
Rotating speed | 0~300rpm |
Dielectric Strength |
≥1000V@50hz(current) ≥500 V@50hz(signal) |
Contact Material | Precious metal |
Electrical Noise | ≤70mΩ(by50rpm) | Housing material | Aluminum alloy sandblasting oxidation white |
Humidity | <60%RH | Installation way | Frank |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
