100M Ethernet Electrical Slip Ring Assembly

100M Ethernet Electrical Slip Ring Assembly

  • 100M Ethernet Electrical Slip Ring Assembly
  • 100M Ethernet Electrical Slip Ring Assembly
  • 100M Ethernet Electrical Slip Ring Assembly
  • 100M Ethernet Electrical Slip Ring Assembly
100M Ethernet Electrical Slip Ring Assembly
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ACN-56A-0218-08S-2E2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 2*18A ; 8*signal; 2*100M Ethernet Signal Lead Wire Size: AWG12#/28# ;CAT5E
Protection Grade: IP54 Working Speed: 0~300rpm
Contact Material: Precious Metal Rating Voltage: 240VAC
High Light:

cable slip ring

,

electrical swivel joint

,

100M Ethernet Electrical Slip Ring

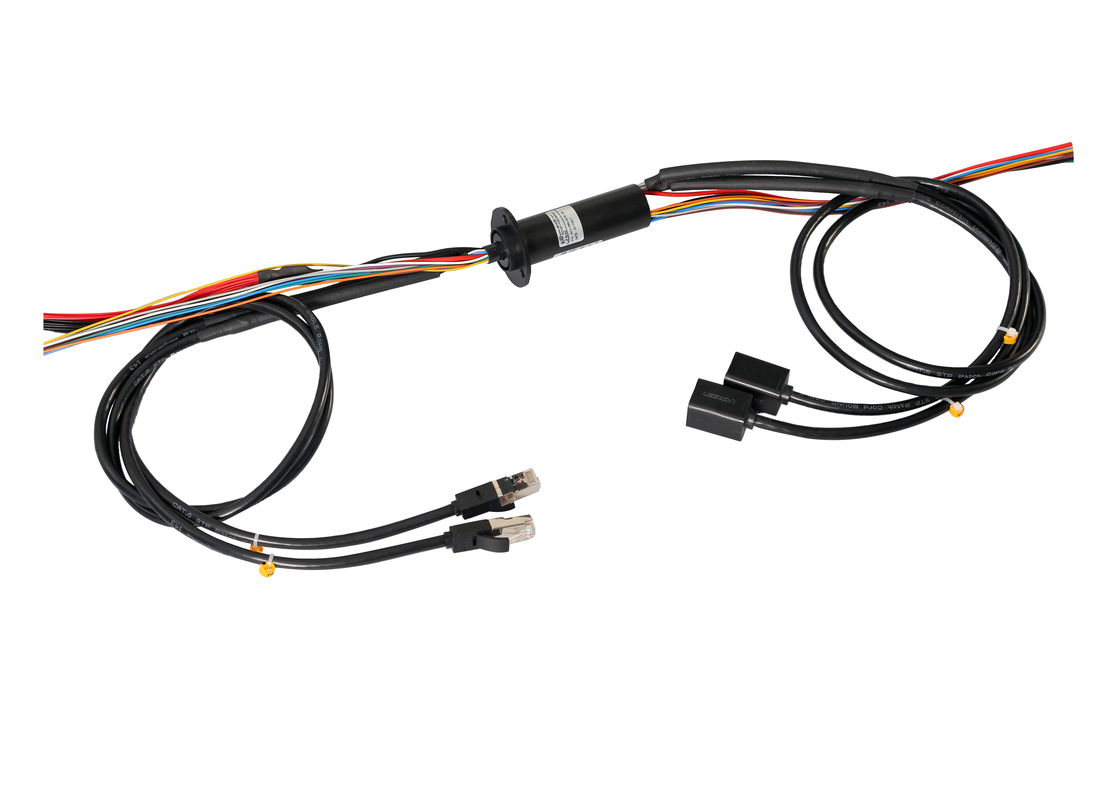

 2 Group 100M Ethernet Signal Slip Ring Used CAT5E Wire To Connect RJ45 Male Connector



Ethernet slip ring specailly designed for high frequency to transmit 100M/1000M Ethernet signals,with advantages of reliable transmitting,no packet loss,no string code,low return loss, low insertion loss.


CENO has developed signal slip ring with Gigabit Ethernet signal character base on market requirement.The Ethernet slip ring comply with EMC compatibility and meet the requirement of Signal impedance matching, to make sure transmission low loss, no error code,long distance transmission. CENO Ethernet slip ring transmission distance could up to 1000Mbps , or over this speed. It could integrate another current and signal into one slip ring for different customer’s requirement.







Features


◆ Ethernet signals meet protocol requirements
◆ Integrate various signal and power

◆ Stable transmission,no package loss,no cross talk,low loss

◆ Transmit 100M/1000M Ethernet

◆ RJ45 connector







Applications


◆ Lithium battery equipment
◆ Automatic equipment





Optional
◆ Circuit number
◆ Ethernet signal size
◆ Installation way
◆ Signal type







Specification



ACN-56A-0218-08S-2E2       Specification Picture
Current 2*18A ; 8*signal; 2*100M Ethernet signal 100M Ethernet Electrical Slip Ring Assembly 0
Working Temperature -45℃~+75℃
Protection Grade IP54
Working speed 0~300rpm
Contact material Precious metal
Rating Voltage 240VAC
Lead Wire Size AWG12#/28# ;CAT5E
Lead Wire Length 805mm






Outline Drawing


100M Ethernet Electrical Slip Ring Assembly 1









Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
