Standard 1000M Ethernet Wire Slip Ring 380VAC 0~300rpm Speed Insulation Resistant

Standard 1000M Ethernet Wire Slip Ring 380VAC 0~300rpm Speed Insulation Resistant

  • Standard 1000M Ethernet Wire Slip Ring 380VAC 0~300rpm Speed Insulation Resistant
  • Standard 1000M Ethernet Wire Slip Ring 380VAC 0~300rpm Speed Insulation Resistant
  • Standard 1000M Ethernet Wire Slip Ring 380VAC 0~300rpm Speed Insulation Resistant
  • Standard 1000M Ethernet Wire Slip Ring 380VAC 0~300rpm Speed Insulation Resistant
Standard 1000M Ethernet Wire Slip Ring 380VAC 0~300rpm Speed Insulation Resistant
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN000-02EG
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 2 Group*1000M Ethernet Rating Voltage: 380VAC
Working Speed: 0~300rpm Contact Material: Precious Metal
Dielectric Strength: ≥1000VAC@50Hz Electrical Noise: ≤70mΩ
High Light:

wire slip ring

,

electrical swivel joint

Standard 1000M Ethernet Slip Ring Insulation Resistance 500MΩ@500VDC





Slip ring with Ethernet signal is widely used in automation equipment,it can combine various

signal and power for stable transmission,no cross talk ,low loss,it also can be provided with RJ45 connector for connection to transmission HD video, high-speed digital signal.
CENO has developed signal slip ring with Gigabit Ethernet signal character base on market requirement.The Ethernet slip ring comply with EMC compatibility and meet the requirement of Signal impedance matching, to make sure transmission low loss, no error code,long distance transmission. CENO Ethernet slip ring transmission distance could up to 1000Mbps , or over this speed. It could integrate another current and signal into one slip ring for different customer’s requirement.







Features

  • Transmit1000M Ethernet
  • Integrate various signal and power,comply with EMC
  • reliable transmitting,no package loss,no cross talk,low loss
  • Compact size,running smooth





Applications

  • Automation equipment
  • Oceanographic survey system
  • Motion simulator



Optional

  • Circuit number
  • IP protection grade
  • Current rating
  • Signal type



Specification



ECN000-02EG  Specification Picture

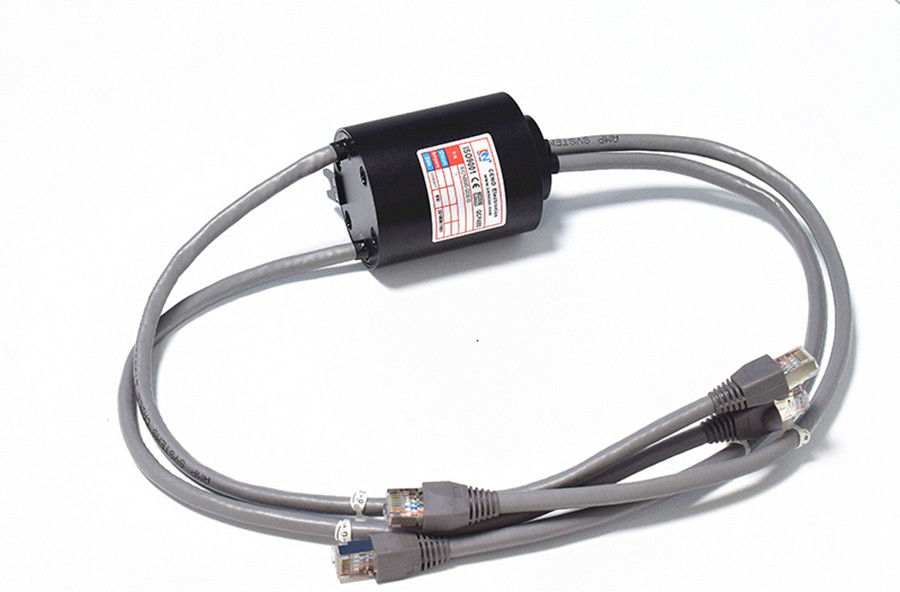

Current 2 group*1000M Ethernet Standard 1000M Ethernet Wire Slip Ring 380VAC 0~300rpm Speed Insulation Resistant 0
Rating voltage 380VAC
Dielectric strength ≥1000VAC@50Hz
Insulation resistance 500MΩ@500VDC
Electrical noise ≤70mΩ
Working temperature -20℃~+60℃
Working speed 0~300rpm
Contact material Precious metal
Housing Material Aluminum alloy sandblasting oxidation black



Outline Drawing


Standard 1000M Ethernet Wire Slip Ring 380VAC 0~300rpm Speed Insulation Resistant 1





Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
