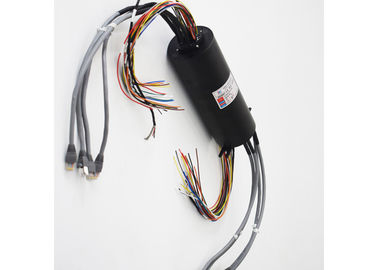

Ethernet Signal Rotary Joint Ernet Slip Ring RJ45 Connector With Cat Cable Connection

Ethernet Signal Rotary Joint Ernet Slip Ring RJ45 Connector With Cat Cable Connection

  • Ethernet Signal Rotary Joint Ernet Slip Ring RJ45 Connector With Cat Cable Connection
  • Ethernet Signal Rotary Joint Ernet Slip Ring RJ45 Connector With Cat Cable Connection
Ethernet Signal Rotary Joint Ernet Slip Ring RJ45 Connector With Cat Cable Connection
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN025-20P2-38S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 20*10A,3* Communication Signal,32*1000M Ethernet,3*signal Electrical Noise: ≤70mΩ(50rpm)
Housing Material: Aluminum Alloy Working Speed: 0~300rpm
Contact Material: Precious Metal Rating Voltage: 380VAC/24VDC
High Light:

cable slip ring

,

electrical swivel joint





Ethernet Signal Rotary Joint With RJ45 Connector And Cat Cable Connection

There are two types of Ethernet slip ring, namely capsule Ethernet and through hole Ethernet, which have the characteristics of stable transmission, no packet loss, no serial number, less loss, less insertion loss and long service life.

Ethernet cable provides two connection modes with RJ45 connector and cat cable for easy connection.





Specification



ECN025-20P2-38S

Current 20*10A,3* communication signal,32*1000M Ethernet,3*signal Ethernet Signal Rotary Joint Ernet Slip Ring RJ45 Connector With Cat Cable Connection 0
Voltage 380VAC/24VDC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength

≥1000V@50Hz(power)

≥300V@50Hz(signal)

Insulation resistance 500MΩ@500VDC
Operating speed 0-300 rpm
Contact material precious metals
Operating temperature -20~+60℃
Through bore size 25.4mm
IP protection grade IP54







Applications

  • HD video monitoring
  • Industrial automation control
  • Motion simulator





Features

  • Power integrate Ethernet signal
  • no packet loss,no string code
  • low return loss,low insertion loss
  • Standard Ethernet wires connection





Optional

  •  Ethernet signal type
  •  Circuit number
  •  Current rating
  • Through hole size





Outline Drawing



Ethernet Signal Rotary Joint Ernet Slip Ring RJ45 Connector With Cat Cable Connection 1







Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system. We will provide one stop service to you timely respond your inquiries.
