| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN025-08P2-02EG |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current: | 8*10A, 2*1000M Ethernet | Through Bore Size: | Ø25.4mm |
|---|---|---|---|
| Protection Grade: | IP54 | Working Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Rating Voltage: | 380VAC |
| High Light: | cable slip ring,electrical swivel joint |
||

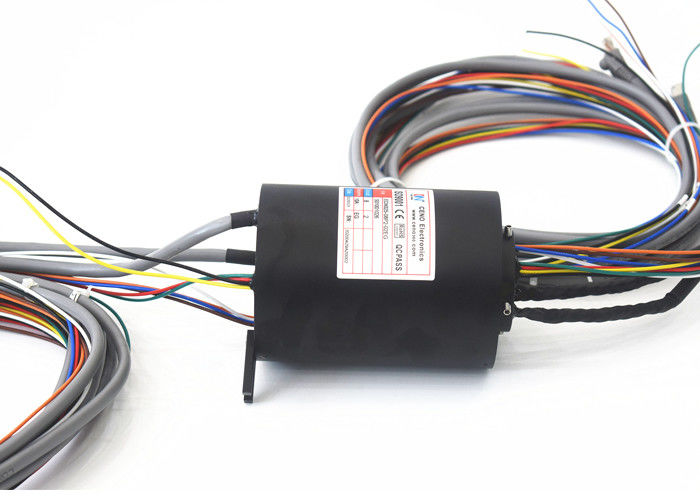

1000M Ethernet Power Slip Ring Assembly ID25.4mm
Hollow shaft Ethernet slip rings transmit 100M/1000M Ethernet signal. Ethernet connections with a combination of 10 amp power connections,with advantages of reliable transmitting,no package loss,no cross talk,low loss, low electrical noise and Ethernet cables terminated with RJ45 connectors.
Specification
| ECN025-08P2-02EG | |
| Current | 8*10A, 2*1000M Ethernet |
| Voltage | 380VAC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength |
≥1000V@50Hz (power) ≥500V@50Hz (signal) |
| Insulation resistance |
500MΩ@500VDC(power) 100MΩ@100VDC(signal) |
| Operating speed | 0-300 rpm |
| Contact material | precious metals |
| Operating temperature | -20~+60℃ |
| Through bore size | 25.4mm |
| IP protection grade | IP54 |
Optional
Features
Applications
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
