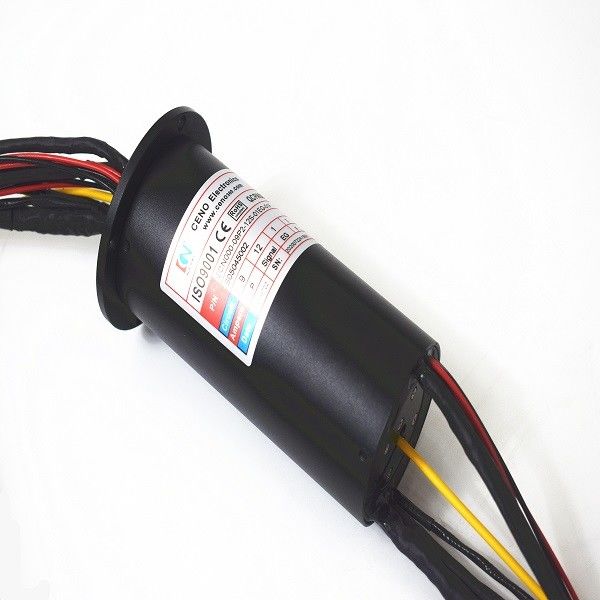

ECN000-09P2-12S-01EG-01F
It’s a Multi-Channel slip ring ,Small size,light weight,convenient to integrate with power slip ring.Transmit signal via fiber optic,no disclose,no EMI ,stable transmission.It’s apply to single mode ,multi mode also can be achieved if customer needed.Contact materials is Gold-gold.Typical application including Radar system,Marine industrial equipment,Medical equipment .
Specification
| Rings |
9 *10A,8*signal,2*RS422,1*Cat6e
1*Fiber Optical
|
| Voltage |
0~240VAC/VDC |
| Electrical noise |
≤30mΩ(50rpm) |
| Dielectric strength |
≥1000V@50Hz(power)
≥500V@50Hz(signal)
|
| Insulation resistance |
≥500MΩ@500VDC(power)
≥100MΩ@100VDC(signal)
|
| Operating speed |
0-150 rpm |
| Contact material |
Gold to gold |
| Housing material |
Aluminium alloy sandblasted black oxide |
| IP protection grade |
IP54 |
Features
- No package loss,no cross talk,low loss
- Low friction, long life,low torque, smooth rotation
- Anti-rotation tab for fixing stator side ,easy to install
Applications
- Motion simulator
- Large engineering equipment
- Automation equipment
Optional
- Through hole size
- Current rating
- Signal type
- IP protection grade
Outline Drawing
