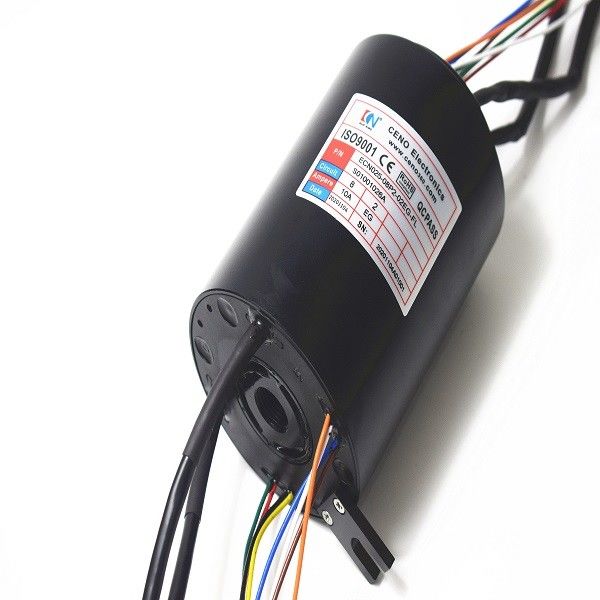

10A 25.4mm 1000M Ethernet Slip Ring For Military Industry
25.4mm through bore slip ring with 2 groups 1000M Ethernet,used for military industry,packaging machine .
The slip ring is designed exclusively for Ethernet transmission. Compatible with data bus protocol it can transmit Ethernet, analog/data signals, USB, RS, CANBUS, and FireWire in a continuous rotation of 360 degrees. Moreover, it can integrate signal, power and high frequency into one unit to lower the height and save the installation space. One more point lies in its high rotating precision, reliable performance, long service life and optional current. All have been certificated by the patent technology.This type Ethernet slip ring with 25.4 mm through bore ,integrated 8 rings of 10A and 2 groups of 1000M Ethernet .CENO will provide you with the best solutions.
Specification
| ECN025-08P2-02EG-FL |
Specification |
| Circuits |
8*10A, 2*Gigabit Ethernet |
| Voltage |
0~380VAC/VDC |
| Electrical noise |
≤70mΩ(50rpm) |
| Dielectric strength |
≥1000V@50Hz(power)
≥500V@50Hz(signal)
|
| Insulation resistance |
≥500MΩ@500VDC(power)
≥100MΩ@100VDC(signal)
|
| Operating speed |
0-300 rpm |
| Contact material |
Precious metal |
| Housing material |
Aluminium alloy |
| IP protection grade |
IP54 |
| Through hole size |
25.4 mm |
Features
- 2 groups 1000M Ethernet
- Integrate 8 *10A power
- Long life time
- Stable performance
- Speed up to 300 rpm continuous
- Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
- Low friction,low torque, smooth rotation
Applications
- Motion simulator
- Spraying equipment
- Engineering machinery
- Military industry
- Medical machine
- Radar system
- Simulation test equipment
Optional
- Through hole size
- Signal type
- Current rating
- IP protection grade
- Cable length
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
