| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN025-28P1-08S-03EM |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current: | 22*5A,2*PE,4*5A 2*RS485,3*100MEthernet | Through Bore Size: | 25.4 Mm |
|---|---|---|---|
| Protection Grade: | IP51 | Working Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Rating Voltage: | 220VAC/48VDC/24VDC |
| Housing Material: | Aluminium Alloy | Electrical Noise: | ≤30mΩ(50rpm) |
| Application: | Medical Machine | ||
| High Light: | RS485 Ethernet Rotary Joint,24VDC Ethernet Rotary Joint,48VDC Ethernet Rotary Joint |
||

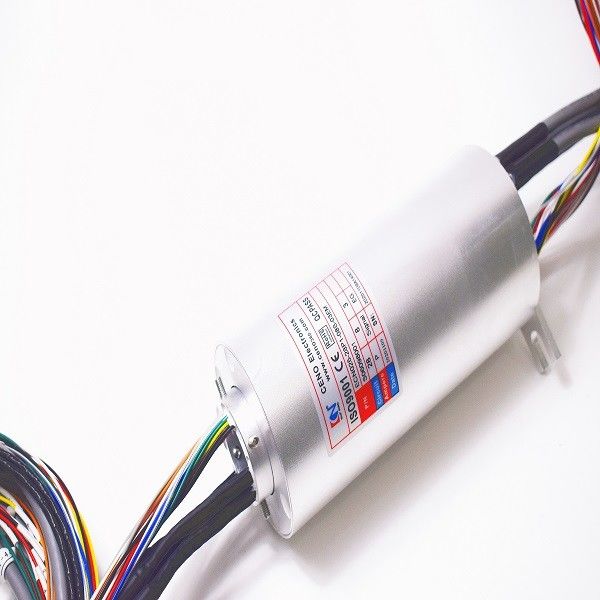

Multi Channel 48VDC 24VDC RS485 Ethernet Rotary Joint
Multi-channel slip ring integrate with power,RS485 and Ethernet . Precious metal contacts,used for medical machine.
This is a multi-channel slip ring integrate with power ,2 channels of RS485 and 3 channels of 100M Ethernet .Cable length 1000mm on both sides .The slip ring is designed exclusively for Ethernet transmission. Moreover, it can integrate signal, power and high frequency into one unit to lower the height and save the installation space. One more point lies in its high rotating precision, reliable performance, long service life and optional current. All have been certificated by the patent technology.Typical application including medical machine,military industry and offshore equipment.
Specification
| ECN025-28P1-08S-03EM | Specification |
| Circuits |
22*5A,2*PE,4*5A 2*RS485,3*100MEthernet |
| Voltage | 220VAC/48VDC/24VDC |
| Electrical noise | ≤30mΩ(50rpm) |
| Dielectric strength |
≥1000V@50Hz(power) ≥300V@50Hz(signal) |
| Insulation resistance |
≥500MΩ@500VDC(power) ≥100MΩ@300VDC(signal) |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP51 |
| Through hole size | 25.4 mm |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
