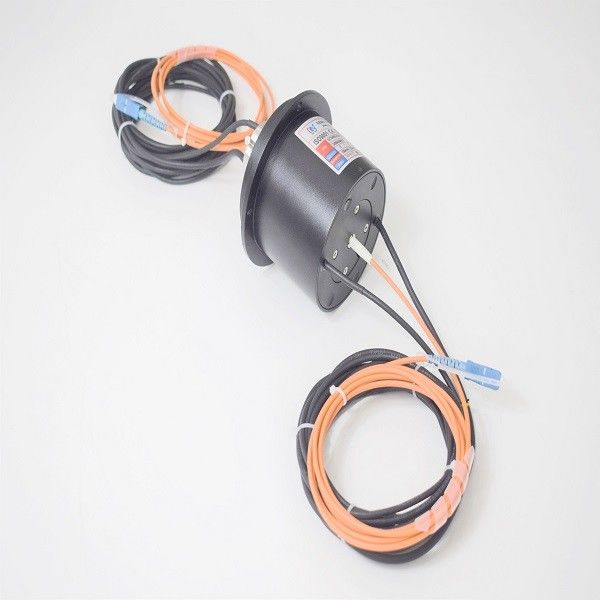

1310nm IP66 Fiber Optic Rotary Joint Remotely Operated Vehicles
  • 1310nm IP66 Fiber Optic Rotary Joint Remotely Operated Vehicles
  • 1310nm IP66 Fiber Optic Rotary Joint Remotely Operated Vehicles
  • 1310nm IP66 Fiber Optic Rotary Joint Remotely Operated Vehicles

1310nm IP66 Fiber Optic Rotary Joint Remotely Operated Vehicles

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN000-02P-04S-01F-IP66
Product Details
Circuits:
2*100mA,4*20mA,1*Fiber Optic
Protection Grade:
IP66
Working Speed:
0-50 Rpm
Contact Material:
Precious Metal
Fiber Type:
MM
Wave Length:
850/1310nm (MM)
Connector Type:
SC
Fiber Channels:
1 Channel
High Light:

IP66 Fiber Optic Rotary Joint

,

1310nm Fiber Optic Rotary Joint

,

1310nm optical rotary joint

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
500pcs per month
Product Description

1310nm IP66 Fiber Optic Rotary Joint Remotely Operated Vehicles



Power/signal and fiber optic rotary joint with IP66 protection grade,wavelength 850/1310nm, Used for Remotely Operated Vehicles



ECN000-02P-04S-01F-IP66 is a fiber optic rotary joint (FORJ),it’s also meet waterproof grade IP66. Fiber optic is designed for the most demanding requirements and tested for those rugged environment and superb optical performance. All of materials and components have been selected to ensure the highest reliability in extreme conditions, including shock & vibration, working temperature, working humidity and dust. The design of these FORJ has proven performance records in both industrial and military applications. Also the package can be configured to fit the customer’s specific need. FORJ are available in single and multi-channel options. The most cost and size efficient options are the single and dual channel design. If more than two fibers are present in a system, multiplexing solutions are available to combine multiple channels onto one or two fiber to allow the use of a one or two channel FORJ.





Specifications



ECN000-02P-04S-01F-IP66 Specification
Circuits & Current 2*100mA,4*20mA,1*Fiber optic
Voltage 0~200 VAC/VDC
Electrical noise Max 30mΩ (50rpm)
Dielectric strength ≥500V@50Hz
Insulation resistance ≥100MΩ@100VDC
Operating speed 0-50 rpm
Contact material Precious metal
Housing material Aluminium alloy + stainless steel
IP protection grade IP66
Through hole size Solid bore
Wave length 850/1310nm
Fiber channel 1channel MM
Connector type SC





Advantages

  • Power integrated fiber optic
  • Waterproof IP66
  • SC type connector
  • Wavelength 850/1310nm





Applications

  • Turntable equipment
  • Marine Population Systems
  • Remotely Operated Vehicles
  • Radar Antennas
  • Material Handling Systems





Optional

  • Circuit number
  • Current rating
  • Fiber type
  • IP grade
  • Cable length





Outline drawing
