Multi-channel fiber optical slip ring upto 31 channels fiber,wavelength 850/1550 nm,it's widely used for medical OCT, medical equipment,packaging machine,inspection instrument,rotary tables etc.

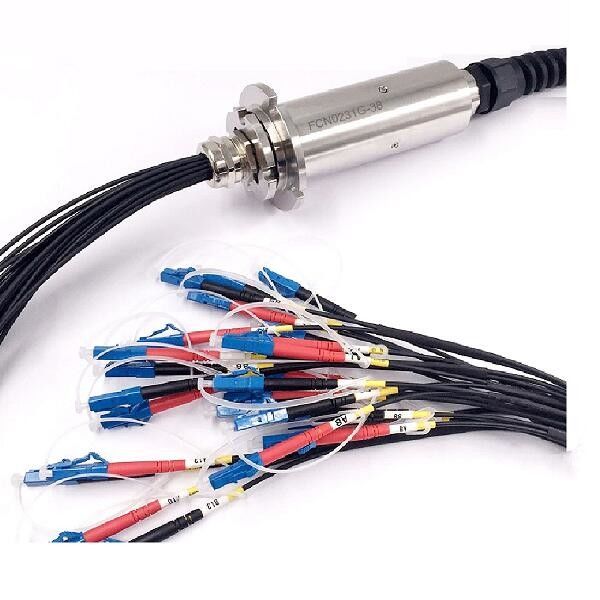

FCN series is a family of fiber optic rotary joints manufactured by CENO.Such rotary unions feature optic fiber as the media for data transmission.FCN0231G-38 is a multi-channel fiber optical slip ring,which can contain 2 to 31 channels fiber optical.we can choose single mode or multi mode fiber or single mode and multi mode mixed use.It has good optical performance and is waterproof and dustproof function,waterproof grade can upto IP65,IP67,IP68 or more higher.The installation volume is only 38mm,which is the smallest diameter of the fiber optical slip rings currently,it is very suitable for equipment with small installation space.
Specification
| FCN0231G-38 |
Specification |
| Fiber channel |
2-31 channels optional |
| Wavelength |
850nm -1550nm (SM/MM) |
| Bandwidth |
+/- 50nm |
| Insertion loss |
<3.5dB |
| Pulling force |
≤12N |
| Operating speed |
0-300 rpm |
| Return loss |
≥40dB |
| Weight |
620 g |
| Housing material |
Stainless steel |
| IP grade |
IP54 (IP65,IP67 optional) |
| Vibration shock standard |
GJB150 |
| Connector |
ST,FC,SC,LC |
Features
-
Fiber channel upto 31
-
Wavelength 850-1550nm
-
Easy to integrate power
-
Maintenance free
Applications
- Medical OCT
- Packaging machine
- Offshore applications
- High-definition camera
Optional
- Circuits number
- IP protection grade
- Fiber optic type
- Signal type & current rating
- Wavelength
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
