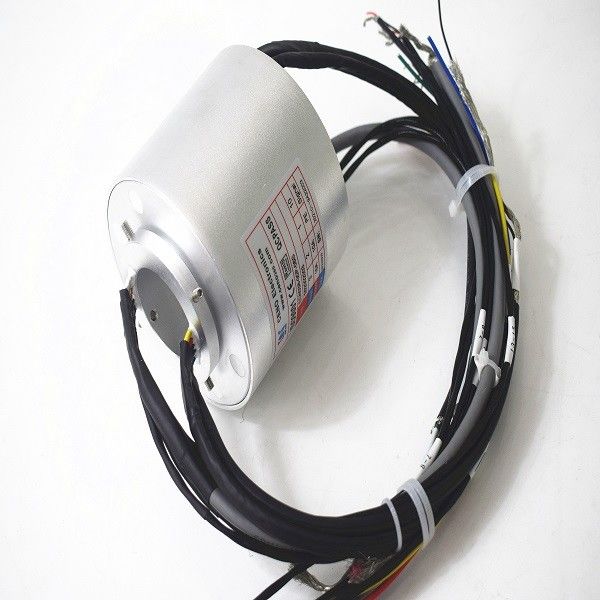

38.1mm Through Hole Ethernet Slip Ring For Packaging Machine

38.1mm Through Hole Ethernet Slip Ring For Packaging Machine

Ethernet slip ring with 38.1mm through hole integrate power & signal ,aluminium housing used for packaging machine

This is a 38.1mm through hole, integrate 3 wires of 15A,2 wires of 10A,6 wires of signal & 1 group of 100M Ethernet the whole body use aluminium alloy material, more durable than engineering plastic material. Transmission power combine with signal, this one have signal type is 232/422, we are professional on shielding technology, anti-interference for line to line.According to different requirements of customers for electrical, signal, data, gas and liquid rotary connection, as well as different power parameter requirements, we provide the best solution to save your time and cost.The inner hole size can be customized according to customer’s request,CENO can make the through bore size up to 980 mm.The typical application including packaging machine ,medcial machine,test equipment etc.Any special demands just contact with us .Any special request please contact with us ,our professional engineer group will provide the best solution to you.

Specification


Features

• Power integrated signal
• Temperature -40 /+80°C
• Through hole size
• Inner bore 38.1mm

Applications

• Radar system
• Medical equipment
• Test equipment
• Turntable equipment
• Oil drilling
• Marine applications

Optional

• Through hole size
• Current & ring numbers
• Signal type
• IP protection grade


Outline Drawing



Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
