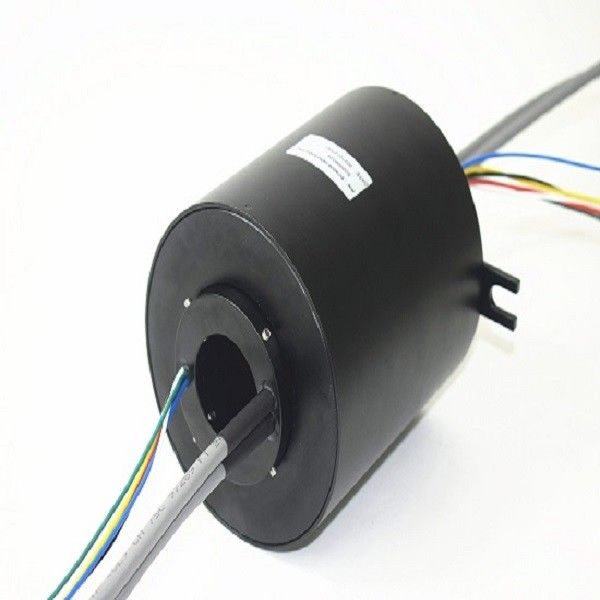

Inner Bore 38.1mm Food Industry Slip Ring With Aluminium Housing

Inner Bore 38.1mm Food Industry Slip Ring With Aluminium Housing

  • Inner Bore 38.1mm Food Industry Slip Ring With Aluminium Housing
  • Inner Bore 38.1mm Food Industry Slip Ring With Aluminium Housing
Inner Bore 38.1mm Food Industry Slip Ring With Aluminium Housing
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN038-06P2-02EG-IP64
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 6*10A,2*1000M Ethernet Through Bore Size: 38.1 Mm
Protection Grade: IP54 Working Speed: 0~60rpm
Contact Material: Precious Metal Rating Voltage: 0~380VAC/VDC
Housing Material: Aluminium Alloy Electrical Noise: ≤30mΩ(50rpm)
Application: Test Equipment,medical Machine
High Light:

38.1mm Food Industry Slip Ring

,

IP54 Food Industry Slip Ring

,

Aluminium alloy waterproof slip ring

Inner Bore 38.1mm Food Industry Slip Ring With Aluminium Housing



Inner bore 38.1mm Ethernet slip ring with aluminium housing used for food industry ,packaging machine,2*1000M Ethernet.



ECN038-06P2-02EG-IP64 is a waterproof slip ring with IP grade IP64,integrated power and 2 groups of 1000M Ethernet slip ring .CENO slip rings for construction machinery have experienced incessant improvement for years. Also with the accumulated experience and technology in design and manufacturing, CENO launched an excellent dedicated slip ring for cranes. In comply with the industrial features; the slip ring operates well in its precise location of its angular rings. Moreover, with a large lifting capacity, the part is able to accomplish 360° rotating transmission with little transmission loss and no data package loss. One point is that its IP68 high protection level supports outdoor working conditions very well.Typical application such as food industry,pipeline equipment,medical mahine,any special application that can use the slip ring please feel free to contact with us ,we can customize the best solution for you .







Specification


ECN038-06P2-02EG-IP64 Specification
Circuits & Current 6*10A,2*1000M Ethernet
Voltage 0~220VAC/VDC
Dielectric strength

≥1000V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥100MΩ@100VDC (signal)

Operating speed 0-60 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP64
Through hole size 38.1 mm
Working temperature -20°C ~ +60°C









Features

  • 360 rotating transmission
  • Working underwater 1000M
  • Integrated power and signal
  • Inner bore 38.1mm





Applications

  • Radar system
  • Construction machinery
  • Ship offshore equipment
  • Display equipment
  • Amusement equipment
  • Medical equipment




Optional

  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade






Outline Drawing
Inner Bore 38.1mm Food Industry Slip Ring With Aluminium Housing 0




Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
