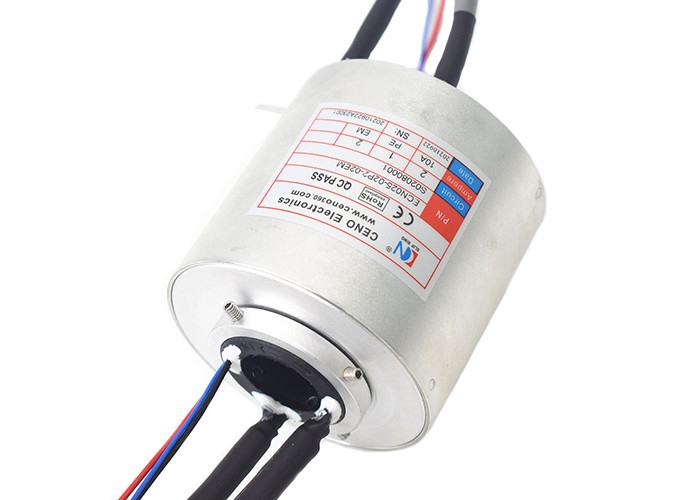

100M Ethernet Slip Rings low electricle noise precious metal contact material
This model belongs to CENO’s Ethernet slip ring series.Its data rate up to 100Mbps.During transferring signal,it also can pass power 10Amp without any interference.However,from its construction,it may also belong to through hole slipring ECN series due to it has 1 inch through hole.
Features
• No electric arc
• High & Low current rating integrated
• No crosstalk
Applications
• Li-ion battery machine
• Rotary table
• Heavy crane
Optional
• Current rating
• Signal type
• Rotation speed
Specification
|
ECN025-02P2-02EM
|
|
| Circuits & Current |
2x10A,1x PE,1xEthernet |
| Voltage |
0~380VAC |
| Electrical noise |
Max 30mΩ (50rpm) |
| Dielectric strength |
≥1500V@50Hz (power)
≥500V@50Hz (signal)
|
| Insulation resistance |
≥500MΩ@500VDC (power)
≥300MΩ@100VDC (signal)
|
| Operating speed |
0-300 rpm |
| Contact material |
Precious metal |
| Housing material |
Aluminium alloy |
| Working temperature |
-20℃~+60℃ |
| IP protection grade |
IP51 |
| Through hole size |
25.4mm |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
