| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | ISO9001,CE,RoHS,UL |
| Model Number: | RCN0301B |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal,, Western Union |
| Supply Ability: | 500pcs per month |
| Channel Number: | 3 | Frequency: | 1.2-1.4GHz/ 1.01-1.1GHz/ 1.01-1.1GHz |
|---|---|---|---|
| Connector: | N-F | Weight: | 4.1kg |
| Body Material: | Aluminum Alloy | Working Speed: | 24rpm |
| Life Time: | 1 Million Rotation | Protection Grade: | IP40 |
| High Light: | 3 Channels coaxial Rotary Joint,IP40 coaxial Rotary Joint,Aluminum Alloy RF coaxial Rotary Joint |
||

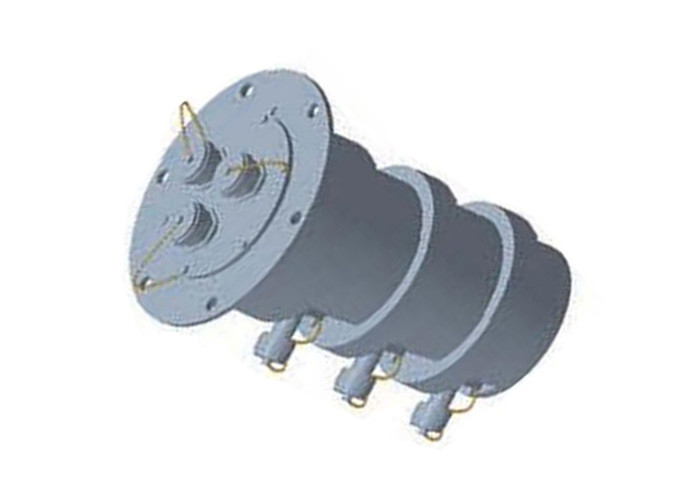

3-channels coaxial radio Frequency Rotary Joint 24rpm temperature -55℃~+70℃
RF rotary joint RCN0301B from CENO electrical company is manufactured to precise radio frequency component standards, It’s mainly applied to rotary antenna systems such as air radar, air traffic control radar, vehicle radar, ship radar, other rotating radar antenna and more. According to the frequency range it can be divided into High Frequency Rotary Joint, Middle frequency Rotary Joint and Low Frequency Rotary Joint. In the model RCN0301B the frequency are two ranges 1.01-1.1GHz and 1.2-1.4GHz, all of interface types are N-F and the maximum Voltage standing wave ratio is 1.05:1. It can support high frequency signal, power and other combined signal transmission.
Specification
| RCN0301B | Specification | ||
| Channel | Channel 1 | Channel 2 | Channel 3 |
| Interface type | N-F | N-F | N-F |
| Frequency | 1.2-1.4GHz | 1.01-1.1GHz | 1.01-1.1GHz |
| Peak power, max | 10KW | 10KW | 10KW |
| Average power, max | 300W | 150W | 150W |
| Voltage standing wave ratio, max | 1.25:1 | 1.25:1 | 1.25:1 |
| Voltage standing wave ratio fluctuation, max | 1.05:1 | 1.05:1 | 1.05:1 |
| Insert loss , max | 0.5dB | 0.5dB | 0.5dB |
| Insert loss fluctuation, max | 0.2dB | 0.2dB | 0.2dB |
| Insulation, max | 60dB | 60dB | 60dB |
Phase stably, max | ± 2° | ||
Working speed, max | 24rpm | ||
Working life, Mix | 1 million rotation | ||
Torque , max | 2.7Nm@ normal temperature | ||
Housing material | Aluminium alloy | ||
Surface treatment | Conductive oxidation ( chromate conversion coating ) | ||
Weight | 4.1kg | ||
Ambient temperature range | -40℃~+70℃ | ||
Storage temperature range | -55℃~+70℃ | ||
Humidity, max | 95% | ||
IP grade | IP40 | ||
Features
• Stable data transmission,no packet loss ,low return loss,
• Low error rate ,super high SNR
• Integrated RF rotary joint
Applications
• Photo electrical pot
• Radar antenna
• Radio locator
Optional
• Channel number
• Working speed
• Radio frequency range
• IP protection grade
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
