Copper Alloy Radio Frequency Rotary Joint 30rpm & temperature -55°C~85°C
CENO's RF rotary joint series, means a group of coaxial rotary joints. It has compact structure, strong anti interference ability, easy to be integrated in other equipment. Apply to RF signal and high data speed rate transmission. Less than 3GHz is defined as middle and low frequency, adopt coaxial way to implement. It widely used in traffic control system and antenna system etc. Besides, CENO RF rotary joint channel number range from 1-5 channel. Different connector type for customer choosing.
Specification
| RCN0118N |
|
| Interface type |
N-f(50Ω) |
| Style |
I |
| Frequency |
DC-18GHz |
| Peak power,max |
10KW |
| Average power,max |
100W@DC-4.5GHz / 50W@4.5-15GHz
/ 30W@8GHz-18GHz
|
| Voltage standing wave radio, max |
1.3 |
| Voltage standing wave radio, Maximum floating |
0.05 |
|
Insert loss, max
|
0.4dB
|
| Insert loss, Maximum floatin |
0.05dB |
| Phase stability,max |
2 deg |
| Starting Torque, max |
0.3Nm@normal temperature |
| Using Torque, max |
0.3Nm@normal temperature |
| Lifetime,min |
5 Million revolutions |
| Housing material |
Copper Alloy |
| Surface treatment |
Ternary plated alloy |
| Net Weight |
150g |
| Temperature Working Ambient range |
-40°C~70°C |
| Relative Humidity, max |
95% |
| IP Grade |
IP60 |
| Storage temperature |
-55°C~85°C |
| Relative Humidity,max |
95% |
| Working speed, max |
30 rpm |
Features
• Easy integrate with other equipment
• Lightweight
• Strong anti interference
• Compact size,high integration level
Applications
• Air control components
• Radar equipment
• Rotary antenna systems
• Missile systems
• Antenna system
Optional
• Circuit number
• Installation way
• Frequency
• Working speed
• Radio frequency range

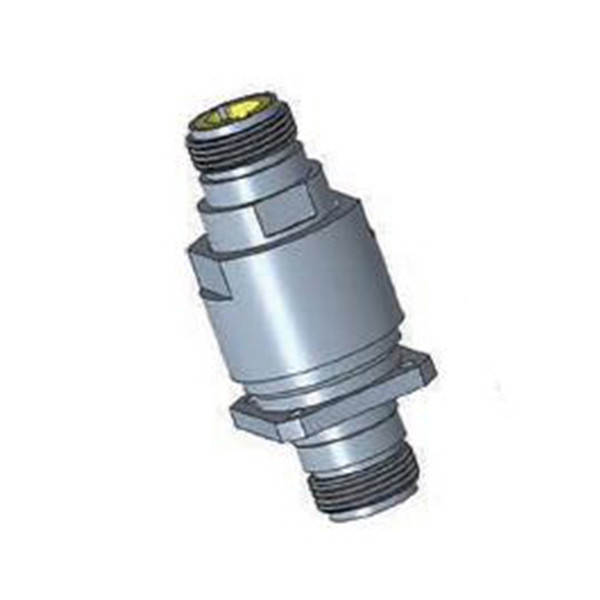

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
