Ethernet Slip Ring 2 x 100M Through Hole Ø100mm temperature -40°C

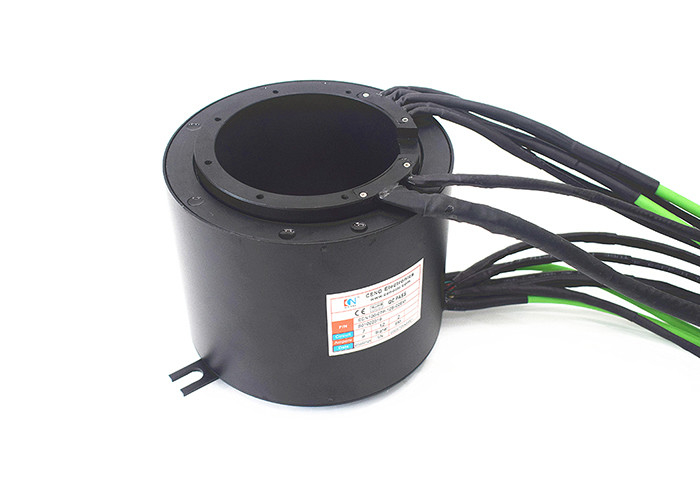

ECN100-07P-12S-02EM Ethernet through bore slip ring is a rotating assembly used to transfer analog data, digital data, control circuits and power from stationary inlets to rotating outlets. This Ethernet slip ring feature a Ø100mm through bore for shaft mounting and include 2group of 100M Ethernet connections terminated with CAT5E connectors. It incorporates low wear and the fiber brush contacts that do not require lubrication. Ethernet slip rings are available from 1circuits to 500 circuits, the protection grade is available from IP51 to IP68. Usually used on the simulation test equipment, Medical equipment, test equipment or Oil drilling.
Features
• Through hole diameter Ø100mm
• Install and Maintenance easier
• 4 group 100M Ethernet
• IP51 and can be optional
• Low working temperature -40°C
Applications
• Simulation test equpment
• Chemical equipment
• Test equipment
• Automation in industry
Optional
• Circuit number & Current
• Working speed
• Protection grade
• Signal type
• Through bore size
Specification
|
ECN100-07P-12S-02EM
|
|
| Current & Circuits |
2 wires * 20A; 4 wires * 25A; 1group * PE; 10 circuits * 1A; 2 circuits * 2A; 2group * 100M Ethernet |
| Rating Voltage |
500VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz; ≥500VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥200MΩ@200VDC |
| Contact resistant float |
Max 10mΩ (50rpm) |
| Lead wire size |
AWG17# Tin coated Teflon® UL
AWG14# Tin coated Teflon® UL
CAT5E
|
| Lead wire length |
Rotor : 1000mm; Stator : 1000mm |
| Operating speed |
0~250rpm |
| Contact material |
Precious Metal |
| Housing material |
Aluminum alloy |
| Working temperature |
-40°C ~ +80°C
|
| Working humidity |
<60% |
| Protection grade |
IP51 |
| Through hole diameter |
Ø100mm |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
