| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | ISO9001,CE,RoHS,UL |
| Model Number: | RCN0204C |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal,, Western Union |
| Supply Ability: | 500pcs per month |
| Channel Number: | 2 | Frequency: | DC-4.5GHz |
|---|---|---|---|
| Weight: | 110g | Interface Type: | SMA-F(50Ω) |
| Life Time: | 5 Millions Rounds | Protection Grade: | IP60 |
| Temperature: | -55°C~85°C | Body Material: | Aluminum Alloy |
| Rotation Speed: | 30 Rpm | Humidity: | 95% |
| High Light: | rf coaxial rotary joint IP60,Dual Channel rf coaxial rotary joint,30rpm dual channel rotary joint |
||

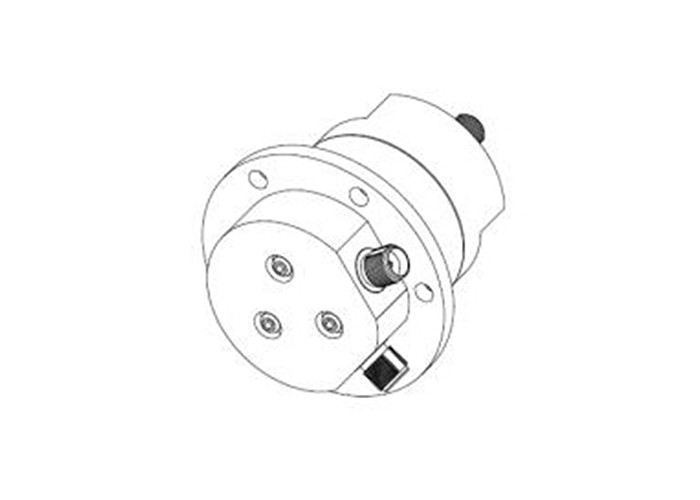

RF Rotary Joint with Dual-channel Coaxial Frequency DC-4.5GHz speed 30rpm
RCN0204C is a Dual-Channel Rotary Joint with connector type SMA-F(50Ω) and Frequency DC-4.5GH from CENO electronics company. It can work stably within the speed of 30rpm at the temperature from -55℃ to +85℃. Most of the parameter is optional as customer request, such as the wave length, connector type, frequency, working speed, protection grade and channels is up to 5. It’s always used on the High definition video equipment, Air traffic control radar, military radar system or electronic warfare system etc.
Specification
| RCN0204C | ||
| Channel | Channel 1 | Channel 2 |
| Connector type | SMA-F(50Ω) | SMA-F(50Ω) |
| Style type | L | L |
| Frequency | DC-4.5GHz | DC-4.5GHz |
| Peak Power, max | 1KW | 1KW |
|
Average Power, max |
100W@DC-2GHz |
10W |
| 60W@2GHz-4.5GHz | ||
| Voltage standing wave ratio, max | 1.2 | 1.5 |
| Voltage standing wave ratio floating, max | 0.05 | 0.2 |
| Insert loss, max | 0.35dB | 0.5dB |
| Insert loss flotation, max | 0.05dB | 0.15dB |
| Phrase stability, max | 1deg | 4deg |
| Working speed, max | 30 rpm | |
| Service life, mix | 5million rounds | |
| Starting torque, max | 0.05Nm@ normal temperature | |
| Using torque, max | 0.05Nm@ normal temperature | |
| Material | Aluminum Alloy | |
| Surface treatment | Conductive oxide | |
| Weight | 110g | |
| Temperature |
Working : ﹣40℃ to +70℃ Storage : ﹣55℃ to +85℃ |
|
| Humidity | 95% | |
| IP Grade | IP60 | |
Features
Applications
Optional
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
