Low temperature Gigabit Ethernet integrated slip ring with low electric noise

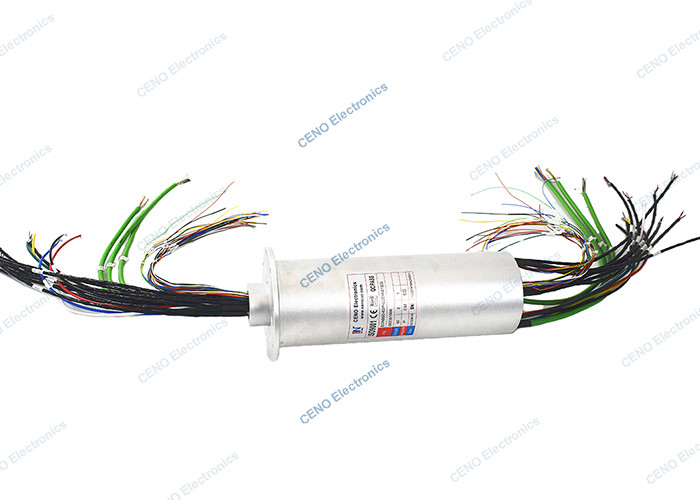

ECN000-62P-02EM-01EG is Gigabit Ethernet slip ring integrated electrical power and signals from CENO electronics. There are 6 circuits of 20A, 48 circuits of 2A, 8 circuits of 5A, 2 circuits of 100M Ethernet and 1 circuits of 1000M Ethernet. All of the signals ans currents are optional, It can mix multi signals and currents. Ethernet technology is the most commonly used network technology, stable transmission, no packet loss and no string code, mainly used on the Turntable test equipment, communication systems, wrapping machines, Electric heating equipment.
Features
- Transmit staly & no packet loss
- Provide RJ45 connector
- Comply with EMC electromagnetic compatibility
- Mix multi signals & power
Applications
- Automatic machine
- Turntable test equipment
- Measuring instrument
- Wrapping machines
Optional
- Circuit number & Current
- Working speed & temperature
- Protection grade
- Material
Specification
|
ECN000-62P-02EM-01EG
|
Specification |
| Current & Circuits |
6*20A, 1*PE, 48*2A, 8*5A, 2*100M Ethernet, 1*1000M Ethernet |
| Rating Voltage |
0~48 VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz
≥300VAC@50Hz
|
| Isolation resistance |
≥500MΩ@500VDC
≥100MΩ@100VDC
|
| Electrical noise |
≤30mΩ (50rpm) |
| Operating speed |
0~300rpm |
| Contact material |
Precious metals / Gold to Gold |
| Housing material |
Aluminum alloy |
| Working temperature |
-40°C~+60°C |
| Working humidity |
60%(20°C) |
| IP protection grade |
IP52 |
| Lead wire size |
AWG12# 22# 24# Tin coated Teflon® UL
4 core shield wire
|
| Lead wire length |
Rotor : 300mm
Stator : 300mm
|
| Installation way |
Stator side is driven horizontally
Rotor side drove by the screw bolt
|
Outline drawing
|
