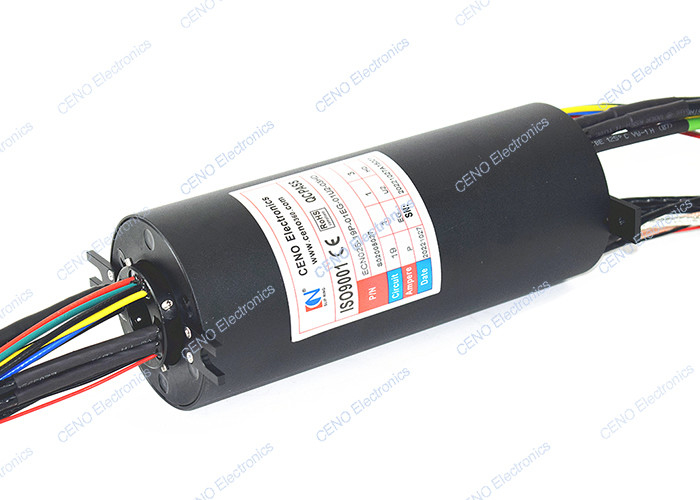

Name: Through Hole Integrated Slip Ring Gigabit Ethernet HDMI Signals With USB
Brand: CENO
SKU: ECN025-19P-01EG-01U2-03HD
Rating: 4.7 (100 reviews)

Home Products HDMI Slip Ring

Through Hole Integrated Slip Ring Gigabit Ethernet HDMI Signals With USB

Product Details:

Place of Origin:	China
Brand Name:	CENO
Certification:	CE,RoHS,UL,ISO9001
Model Number:	ECN025-19P-01EG-01U2-03HD

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	Off the shelf
Payment Terms:	T/T,Paypal,Western Union, L/C
Supply Ability:	10000pcs month

Contact Now

Detailed Product Description

Circuit Number & Current:	260A; 210A; 625A; 87A; 1PE; 11000M Ethernet; 1groupUSB2.0; 2 GroupBNC; 1group*DB9	Voltage:	0~24VAC/DC
Protection Grade:	IP51	Operating Humidity:	60%RH
Working Speed:	0~300rpm	Working Temperature:	-20℃~+60℃
Contact & Housing Material:	Precious Metal	Housing Material:	Aluminum Alloy
ID:	Ø25.4mm	OD:	Ø95mm
Dielectric Strength:	≥1000VAC@50Hz ≥300VAC@50Hz	Isolation Resistance:	≥500MΩ@500VDC ≥100MΩ@100VDC
Electrical Noise:	≤30mΩ (50rpm)	Lead Wire Size:	AWG6# Tin Coated Teflon ®UL AWG17# Tin Coated Teflon ®UL AWG12# Tin Coated Teflon ®UL 4 Core Twisted Wire AWG17# Cat5e RG179 9 Core Twisted Wire
Lead Wire Length:	Rotor : 1000mm Stator : 3000mm	Installation Way:	Rotor Side Fixed On The Main Shaft With Screws
High Light:	IP51 Integrated Slip Ring , HDMI Signals Integrated slip ring , USB Through Hole slip ring

Integrated Through hole Gigabit Ethernet Hdmi Signals slip ring with USB

ECN025-19P-01EG-01U2-03HD is an integrated signals slip ring with through hole from CENO electronics. It’s combined with circuits of electrical power, 1group of 1000M Ethernet, 1group of USB signal, 2 group of BCN and 1group of DB9. Often called hollow shaft industry slip ring or electrical collector too, the hole size from 3mm to 980mm are optional, with a variety of functions and can transmit signals ,data and analog signals stably. Due to it’s stable transmission, no package loss and low insertion loss, it’s mainly used on the Automatic machines, Infrared photography, High definition photography, Motion simulator.

Features

Variety of functions
Specification are optional
Transmit Gigabit Ethernet USB BNC & DB9 signal data stably

Applications

Automatic machine
Infrared photography
Opto electric pod
Motion simulator

Optional

Circuit number & Current
Working speed & temperature
Protection grade & materials
Signal type

Specification

ECN025-19P-01EG-01U2-03HD	Specification
Current & Circuits	260A; 210A; 625A; 87A; 1PE; 11000M Ethernet; 1groupUSB2.0; 2 groupBNC; 1group*DB9
Rating Voltage	0~24 VAC/VDC
Dielectric strength	≥1000VAC@50Hz ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC ≥100MΩ@100VDC
Electrical noise	≤30mΩ (50rpm)
Operating speed	0~300rpm
Contact material	Precious metals
Housing material	Aluminum alloy
Working temperature	-20°C~+60°C
Working humidity	Max60%
IP protection grade	IP51
Through hole size	Ø25.4mm
Lead wire size	AWG6# Tin coated Teflon ®UL AWG17# Tin coated Teflon ®UL AWG12# Tin coated Teflon ®UL 4 core twisted wire AWG17# Cat5e RG179 9 core twisted wire
Lead wire length	Rotor : 1000mm Stator : 3000mm
Installation way	Rotor side fixed on the main shaft with screws

Outline drawing

Through Hole Integrated Slip Ring Gigabit Ethernet HDMI Signals With USB 0

Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
