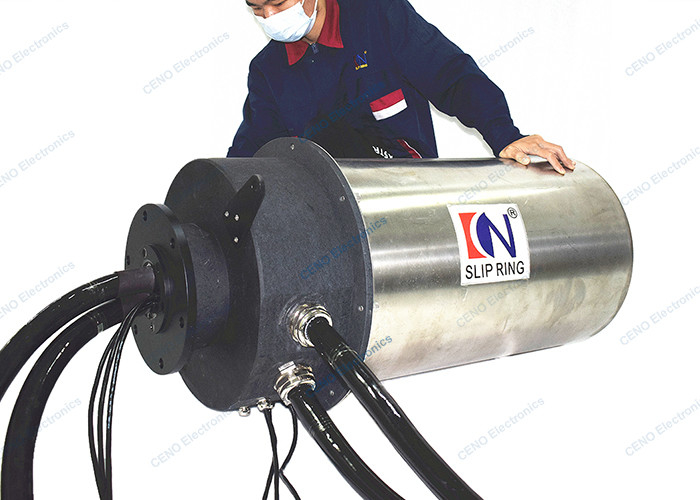

High Protection Waterproof Slip Ring with 1000M Ethernet Signal For Industry
BHCN-C-10P-03EM is a central collector slip ring from CENO electronics, it also called high current slip ring, large power slip ring, carbon brush slip ring or marine slip ring. There are 10 circuits for 130A electrical power and 3 channel for 100M Ethernet signal. It works stably at the speed of 0~15rpm with low electrical noise 30mΩ and with high protection grade IP65. Often apply to the harsh environment such as the marine machinery, mining equipment, engineering machinery or cable drum or reel.
Features
- Excellent weather resistance
- High electrical safety
- Low VOC emissions and low maintenance cost and good economic returns.
Applications
- Automatic machine
- Marine machinery
- Mining equipment
- Offshore platform crane
Optional
- Circuit number & Current
- Working speed
- Materials
- Protection grade
Specification
|
BHCN-C-10P-03EM
|
Specification |
| Current & Circuits |
Electric Power & Ethernet Signal
|
| Rating Voltage |
0~650 VAC/VDC |
| Dielectric strength |
≥1500VAC@50Hz; ≥300VAC@50Hz
|
| Isolation resistance |
≥500MQ@500VDC; ≥100MQ@300VDC
|
| Electrical noise |
≤30mΩ (50rpm) |
| Lead wire length |
As request
|
| Operating speed |
0~15rpm |
| Contact material |
Precious metal |
| Housing material |
Aluminum alloy |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60%(20°C) |
| IP protection grade |
IP65 |
| Installation way |
Flange installation |
Outline drawing
|
