| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | ISO9001,CE,RoHS,UL |
| Model Number: | RCN0208B |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal,, Western Union |
| Supply Ability: | 500pcs per month |
| Channel Number: | 2 Channels | Interface Type: | SMA-F |
|---|---|---|---|
| Style: | I | Frequency: | DC-8GHz |
| Peak Power, Max: | 1KW | Working Speed, Max: | 30rpm |
| Working Life, Mix: | 5Million | Starting Torque, Max: | 0.05Nm@ Normal Temperature |
| Using Torque, Max: | 0.05Nm@ Normal Temperature | Housing Material: | Aluminium Alloy |
| Surface Treatment: | Conductive Oxidation | Weight: | 130g |
| Working Temperature: | -40℃-70℃ | Humidity: | 95% |
| High Light: | Coaxial Radio Frequency Rotary Joint,SMA-F Radio Frequency Rotary Joint,Low Temperature SMA Rotary Joint |
||

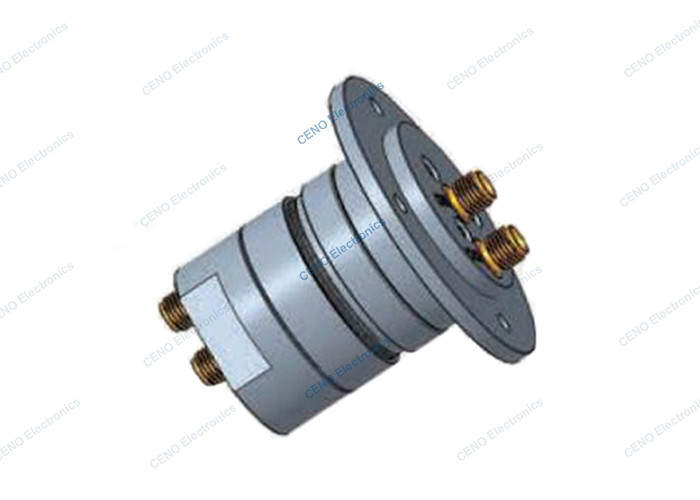

Dual-channel Coaxial Radio Frequency Rotary Joint with Low Temperature
RCN0208B is a dual-channel coaxial Radio Frequency Rotary Joint with SMA-F interface from CENO Electronics, it can be working stable at the temperature from -40℃ to 70℃ in the frequency range is DC-8GHz. As we know, the dual-channel coaxial rotary joint is a microwave device. Compared with common similar products, it is beneficial to reduce the structure size and processing, is conducive to stable rotation, and is suitable for wide frequency band. With excellent performance indicators, it can meet the microwave transmission in wide frequency band. At present, the Coaxial Rotary Joint mainly apply to Radar system and Rotating antenna.
Specification
| RCN0208B | Specification | |
| Channel | Channel 1 | Channel 2 |
| Interface type | SMA-F(50Ω) | SMA-F(50Ω) |
| Style | I | I |
| Frequency | DC-8GHz | DC-8GHz |
| Peak power, max | 1KW | 1KW |
| Average power, max |
100W@DC-2GHz 35W@2GHz-8GHz |
10W |
| Voltage standing wave ratio, max | 1.3 | 1.6 |
| Voltage standing wave radio, floating | 0.1 | 0.2 |
| Insert loss, max | 0.4dB | 0.8dB |
| Insert loss, max floating | 0.1dB | 0.3dB |
| Isolation, mix | 50dB | 50dB |
| Phase stability, max | 1deg | 4deg |
| Working speed, max | 30rpm | |
| Working life, mix | 5Million | |
| Starting Torque, max | 0.05Nm@ normal temperature | |
| Using torque, max | 0.05Nm@ normal temperature | |
| Housing material | Aluminium Alloy | |
| Surface treatment | Conductive oxidation | |
| Weight | 130g | |
| Working temperature | -40℃-70℃ | |
| Humidity | 95% | |
Features
Light weight & Compact size
Fix with Flange & leaf spring
Shield the palisade to sure the conductive full contact
Transmit stably
Applications
Automatic machine
Rotating antenna
Radar system
Military
Optional
Channels and integrated type
Working speed & temperature
Protection grade
Materials
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
