100M Megabit Ethernet Signal Slip Ring Combined Electrical Swivel

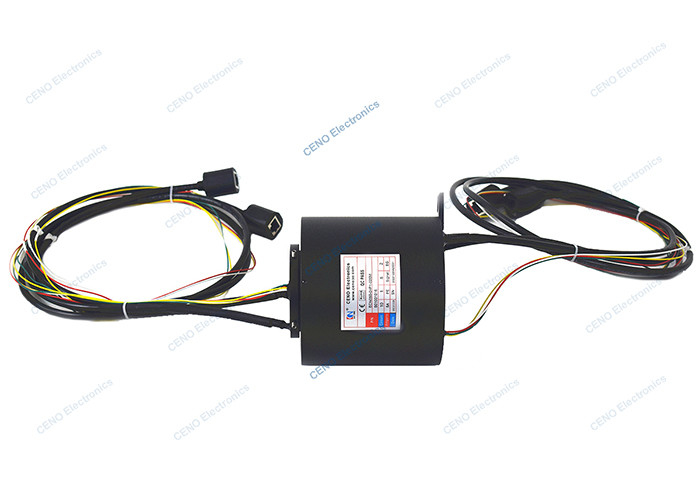

ECN050-04P1-02EM is an Ethernet slip ring with inner bore size Ø50mm for industry application from CENO Electronics, there are 4 circuits for 5A electric power and 2 circuits for 100M Megabit Ethernet signals. It can be working stably at the speed of 0~300rpm in the normal working temperature -20°C ~ +60°C, and all of the operating speed, working temperature, IP grade, contact or housing materials, transmission signals, even inner or external diameter can be customized as different application and special requirements.
Features
- Stable transmit multi-channels Megabit or Gigabit Ethernet
- No electromagnetic interference between current & signal.
- Standard or customization
Applications
- Automatic machine
- Communication systems
- Measuring instrument
- Turntable test equipment
- Electric heating equipment
Optional
- Circuit number & Current
- Channels Ethernet type
- Materials
- Protection grade
- Operating temperature
Specification
|
ECN050-04P1-02EM
|
Specification |
| Current & Circuits |
4 circuits*5A/24VDC, 2circuits*100M Ethernet |
| Rating Voltage |
0~380VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz (Power)
≥300VAC@50Hz (Signal)
|
| Isolation resistance |
≥500MΩ@500VDC (Power)
≥100MΩ@100VDC (Signal)
|
| Operating speed |
0~300rpm |
| Contact material |
Precious metal |
| Housing material |
Aluminum alloy |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60% |
| IP protection grade |
IP51 |
| Through hole size |
Ø50mm |
| Lead wire size |
AWG22# Tin coated Teflon®UL
Cat5e net wire
|
| Lead wire length |
Rotor : 1000mm
Stator : 1000mm
|
| Rotation way |
Fix up stator side with anti-rotation side shaft drives rotor running |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
