| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN050-08P5-01EM |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current & Circuits: | 8circuits*32A, 1circuits*100M Ethernet | Rating Voltage: | 0~415VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1500VAC@50Hz (Power) ≥300VAC@50Hz (Signal) | Isolation Resistance: | ≥500MΩ@500VDC (Power) ≥100MΩ@100VDC (Signal) |
| Operating Speed: | 0~300rpm | Contact Material: | Precious Metal |
| Housing Material: | Aluminum Alloy | Working Temperature: | -20°C~+60°C |
| Working Humidity: | 60% | IP Protection Grade: | IP51 |
| Through Hole Size: | Ø50mm | Lead Wire Size: | AWG12# Wire Teflon®UL Cat5e Net Wire |
| Lead Wire Length: | Rotor : 300mm Stator : 300mm | Rotation Way: | Fix Up Stator Side With Anti-rotation Side Shaft Drives Rotor Running |
| High Light: | OEM Megabit Ethernet Slip Ring,Through Hole Ethernet Slip Ring,50mm Through Hole Slip Ring |
||

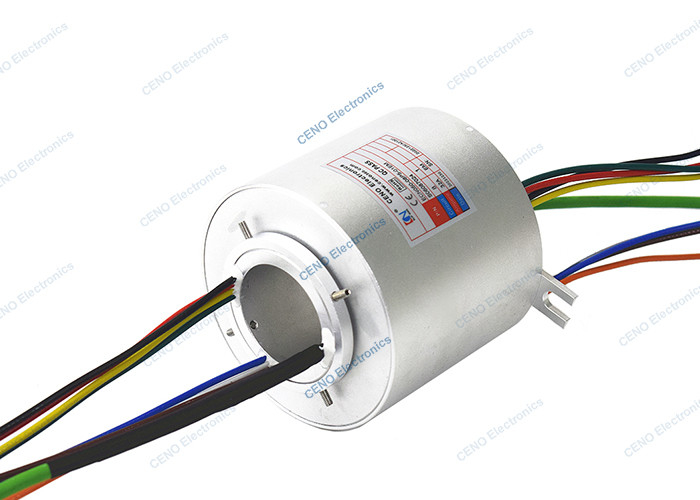

OEM or ODM Megabit Ethernet Signal Slip Ring Combined Electrical Swivel
ECN050-08P5-01EM is CENO’s new developed product Megabit Ethernet Signal Slip Ring with through hole Ø50mm. There are 8 circuits for 32A electrical power and 1 circuit for 100M Ethernet signal with Rating voltage 415VAC. There is no electromagnetic interference between current and signal, comply with EMC electromagnetic compatibility requirements, and can combine multi channel variety data and electrical power signal as different application. CENO’s Ethernet slip ring mainly used on the Communication system, Automation Equipment, Turntable test equipment or Filling machine etc.
Features
Applications
Optional
Specification
|
ECN050-08P5-01EM |
Specification |
| Current & Circuits | 8circuits*32A, 1circuits*100M Ethernet |
| Rating Voltage | 0~415VAC/VDC |
| Dielectric strength |
≥1500VAC@50Hz (Power) ≥300VAC@50Hz (Signal) |
|
Isolation resistance |
≥500MΩ@500VDC (Power) ≥100MΩ@100VDC (Signal) |
| Operating speed | 0~300rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60% |
| IP protection grade | IP51 |
| Through hole size | Ø50mm |
| Lead wire size |
AWG12# Wire Teflon®UL Cat5e net wire |
| Lead wire length |
Rotor : 300mm Stator : 300mm |
| Rotation way | Fix up stator side with anti-rotation side shaft drives rotor running |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
