| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-04P2-08P1-01EG |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current & Circuits: | 4 Circuits*10A, 1 Circuit*PE, 8 Circuits*2A; 1 Circuits* Gigabit Ethernet | Rating Voltage: | 0~400VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000V@50Hz (current) ≥300VAC@50Hz (signal) | Isolation Resistance: | ≥500MΩ@500VDC ≥100MΩ@300VDC |
| Operating Speed: | 0~300rpm | Contact Material: | Precious Metal |
| Housing Material: | Aluminum Alloy | Working Temperature: | -20°C~+60°C |
| Working Humidity: | 60% | IP Protection Grade: | IP51 |
| Installation Way: | Flange Installation On The Stator Side | Lead Wire Size: | AWG17#22# Wire Teflon® UL |
| High Light: | 1000M Ethernet Slip Ring With Flange,Gigabit Ethernet Slip Ring 300rpm,Precious metal Ethernet Slip Ring |
||

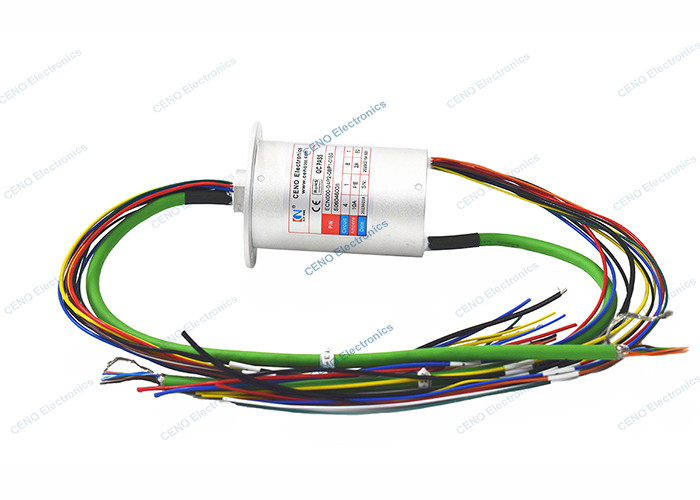

1000M Gigabit Ethernet Slip Ring With Flange For Industry Applications
ECN000-04P2-08P1-01EG is a new product named 1000M Gigabit Ethernet slip ring for automation system application from CENO Electronics. During the past 20+ years, our engineers have developed the capability to design and manufacture the advanced Ethernet slip ring for the communication system, Turntable equipment, Filling machine and the smart home system applications - applications where precise control of stable transmit, non string code, low loss and ultra-long distance transmission are critical. For more information about how CENO’s slip ring can fit your specific application, pls contact us freely.
Features
Applications
Optional
Specification
|
ECN000-04P2-08P1-01EG |
Specification |
| Current & Circuits | 4 circuits*10A, 1 circuit*PE, 8 circuits*2A; 1 circuits* Gigabit Ethernet |
| Rating Voltage | 0~400VAC/VDC |
| Dielectric strength |
≥1000V@50Hz (current) ≥300VAC@50Hz (signal) |
| Isolation resistance |
≥500MΩ@500VDC ≥100MΩ@300VDC |
| Electrical Noise | ≤30mΩ |
| Operating speed | 0~300rpm |
| Contact material | Precious metal, Gold to gold |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Installation Way | Flange installation on the stator side |
| Lead wire size | AWG17#22# Wire Teflon® UL |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
