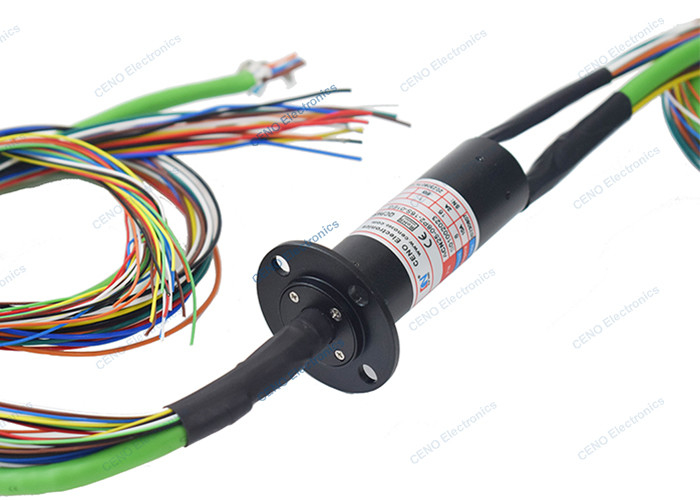

Miniature 250rpm Ethernet Slip Ring Capsule Electrical Collector
  • Miniature 250rpm Ethernet Slip Ring Capsule Electrical Collector
  • Miniature 250rpm Ethernet Slip Ring Capsule Electrical Collector
  • Miniature 250rpm Ethernet Slip Ring Capsule Electrical Collector

Miniature 250rpm Ethernet Slip Ring Capsule Electrical Collector

Place of Origin China
Brand Name CENO
Certification CE,RoHS,UL,ISO9001
Model Number ACN25-08P2-16S-01EG
Product Details
Current & Circuits:
8*10A; 16*2A; 1*1000M Ethernet;
Rating Voltage:
0~240 VAC/VDC
Dielectric Strength:
≥500VAC@50Hz
Isolation Resistance:
≥500MΩ@500VDC
Operating Speed:
0~250rpm
Contact Material:
Precious Metal
Housing Material:
Aluminum Alloy
Working Temperature:
-40°C~+80°C
IP Protection Grade:
IP51
Working Humidity:
80%
External Diameter:
Ø25mm
Lead Wire Length:
Rotor : 500±10mm Stator : 1000±10mm
Highlight:

250rpm ethernet slip ring

,

precious metal ethernet slip ring

,

250rpm ethernet rotary joint

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
Off the shelf
Payment Terms
T/T,Paypal,Western Union, L/C
Supply Ability
10000pcs month
Product Description

Miniature Low Temperature 1000M Ethernet Signal Slip Ring Capsule & Electrical Collector



CENO Electronics is a leading designer and manufacture of slip rings, including many kinds of slip ring , such as the power slip ring, function slip ring, signal slip ring and and integrated slip ring. ACN25-08P2-16S-01EG is our new product low temperature mini slip ring capsule, one of the key features of CENO slip rings is their ability to be customized to meet specific requirements. No matter what type of slip ring you need, you can trust CENO Electronics for quality products. Please contact us to learn more about CENO slip rings and see how we can help you meet your needs.







Features

  • Used in low temperature
  • Can be integrated various data
  • Install easily & transmit stably
  • Circuit: 1~200 circuits optional
  • 1 group for 1000M Ethernet



Applications

  • Aircraft
  • Robot UAV
  • Security system
  • Camera
  • Medical equipment



Optional

  • Circuit, Voltage, Current
  • Protection Grade
  • Contact / Housing Materials
  • Operation temperature
  • Working speed





Specification

ACN25-08P2-16S-01EG

Specification
Current & Circuits  8circuits*10A; 16 circuits*2A; 1*1000M Ethernet
Voltage 0~240 VAC/VDC
Dielectric strength ≥500VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Contact resistance 10mΩ (50rpm)
Contact material Precious metal
Housing material Aluminum Alloy
Working temperature -40°C~+80°C
Working humidity 80%RH
IP protection grade IP51
Operating speed 0~250rpm

Lead wire length

Rotor : 500±10mm

Stator : 1000±10mm

External diameter Ø25mm







Outline drawing
Miniature 250rpm Ethernet Slip Ring Capsule Electrical Collector 0




Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification
ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
