Through Hole Electrical Slip Ring With Signal For Crane In Low Temperature
  • Through Hole Electrical Slip Ring With Signal For Crane In Low Temperature
  • Through Hole Electrical Slip Ring With Signal For Crane In Low Temperature
  • Through Hole Electrical Slip Ring With Signal For Crane In Low Temperature
  • Through Hole Electrical Slip Ring With Signal For Crane In Low Temperature
Through Hole Electrical Slip Ring With Signal For Crane In Low Temperature

Through Hole Electrical Slip Ring With Signal For Crane In Low Temperature

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN035-06P2-05P1-01PE-12S
Product Details
Current & Circuits:
6* 10A; 5* 5A; 1* PE; 12* Signal
Rating Voltage:
380VAC
Dielectric Strength:
≥1000VAC@50Hz
Isolation Resistance:
≥500MΩ@100VDC
Electrical Noise:
≤70mΩ (50rpm)
Operating Speed:
0~300rpm
Contact Material:
Precious Metal
Housing Material:
Aluminum Alloy + Stainless Steel
Working Temperature:
-45°C~+85°C
Working Humidity:
60%
IP Protection Grade:
IP51
Through Hole Size:
Ø35mm
External Diameter:
Ø99mm
Lead Wire Length:
Rotor: 1500mm; Stator: 1500mm
Installation:
Stator Side Fixed On Main Shaft With Screws
Housing Material:
Aluminum Alloy
Highlight:

crane electrical slip ring

,

low temperature electrical slip ring

,

signal electrical slip ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
2 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

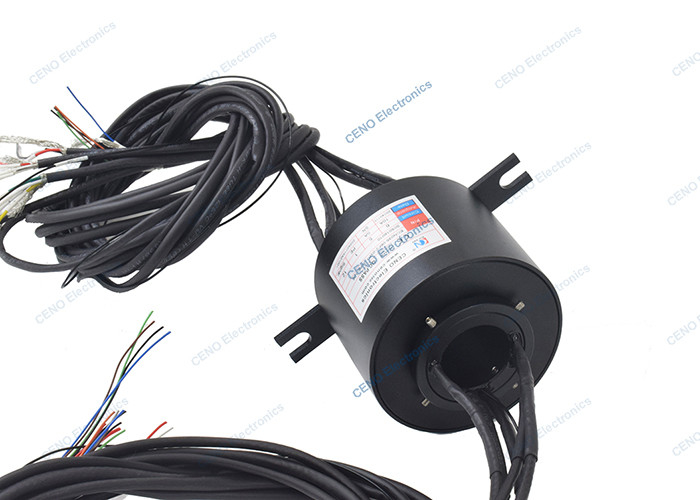

Through hole electrical slip ring with signal for crane in low temperature



ECN035-06P2-05P1-01PE-12S is through hole slip ring with inner bore size 35mm for low temperature environment. CENO through hole slip ring has excellent performance and good price, often designed for high / low temperature environment, shockproof, anti-corrosion, waterproof and other power collection system. Support to integrate various signals, as Ethernet, USB, HDMI SDI and CAN bus as customer special requirement, For more information, please contact us.





Features

  • Through hole design with inner bore size optional
  • Low temperature resistance and ageing resistance
  • Can be integrated various data



Applications

  • Automatic machine
  • High Altitude airborne
  • Communication systems
  • Military equipment
  • Polar region crane



Optional

  • Circuits, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • IP Grade
  • Working speed & temperature



Specification

ECN035-06P2-05P1-01PE-12S

 Specification
Current & Circuits 6 Circuits* 10A; 5 Circuits* 5A; 1 Circuits* PE; 12Circuits* Signal
Rating Voltage 380VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance 500MΩ@500VDC
Contact resistance 70mΩ (50rpm)
Temperature -40°C~+80°C; -45°C~+85°C
Working humidity 60%RH
IP protection grade IP51
Operating speed 0~300rpm
Inner Diameter Ø35mm
External Diameter Ø99mm
Lead wire length Rotor: 1500mm; Stator: 1500mm
Installation Stator side fixed on main shaft with screws
Contact Material Precious Metal
Housing Material Aluminum Alloy







Outline drawing

Through Hole Electrical Slip Ring With Signal For Crane In Low Temperature 0




CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


Why with CENO

Through Hole Electrical Slip Ring With Signal For Crane In Low Temperature 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Through Hole Electrical Slip Ring With Signal For Crane In Low Temperature 2



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Through Hole Electrical Slip Ring With Signal For Crane In Low Temperature 3



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
