Radio Frequency Rotary Joint
>
|
|
| Place of Origin | China |
| Brand Name | CENO |
| Certification | ISO9001,CE,RoHS,UL |
| Model Number | RCN0404A |

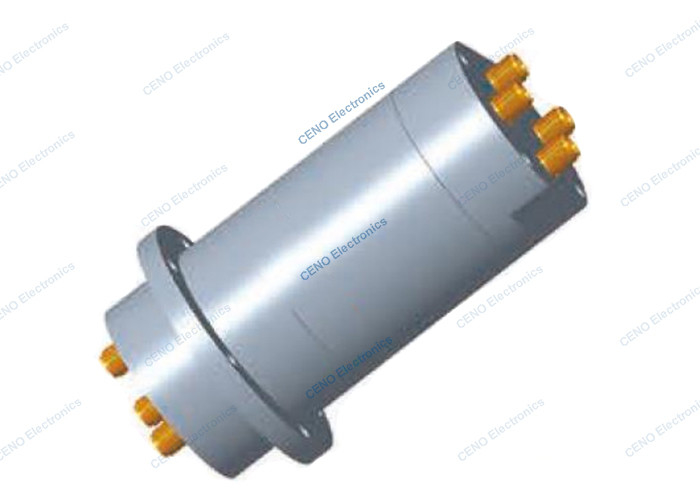

Antenna Slip Ring with 4 Channels SMA-F Radio Frequency Rotary Joints
RCN0404A is CENO new product 4-channels RF Rotary Joints which belongs to RCN system products. This series of slip rings is a non-standard customized series, designed for the radar industry. RF Rotary Joints can be integrated current and signals. The frequency of the joint ranges from DC to 50GHz,and the number of channels range from single to five. RF Rotary Joints have stable performance, meet EMC electromagnetic compatibility requirements, and widely used in various radar antenna systems.
Features
Applications
Optional
Specification
|
RCN0404A |
Specification | |||
| Channel | CH1 | CH2 | CH3 | CH4 |
| Interface | SMA-F(50Ω) | SMA-F(50Ω) | SMA-F(50Ω) | SMA-F(50Ω) |
| Frequency range | DC-4GHz | DC-4GHz | DC-4GHz | DC-4GHz |
| Style | I | I | I | I |
| Average power | 50W | 10W | 10W | 10W |
| VSWR, max | 1.3 | 1.5 | 1.5 | 1.5 |
| VSWR WOW, max | 0.1 | 0.1 | 0.1 | 0.1 |
| Insertion Loss, max | 1.3dB | 1dB | 1dB | 1dB |
| Insertion loss,wow,max | 0.1dB | 0.1dB | 0.1dB | 0.1dB |
| Insulation, min | 55dB | 55dB | 55dB | 55dB |
| Phase stable, max | 1deg | 4deg | 4deg | 4deg |
| Working speed | 0~30rpm | |||
| Service life,Min | 5x106 Rotation | |||
| Torque, Max | 0.8Nm@normal temperature | |||
| Materials | Aluminum Alloy | |||
| Surface treatment | Electric Conductive Oxidation | |||
| Net Weight | 700g | |||
| IP Grade | IP60 | |||
|
Working Temperature Storage Temperature |
-40℃~+70℃ -50℃~+70℃ |
|||
| Working Humidity | 95% | |||
Outline drawing
