Radio Frequency Rotary Joint
>
|
| Place of Origin | China |
| Brand Name | CENO |
| Certification | ISO9001,CE,RoHS,UL |
| Model Number | RCN0806A |

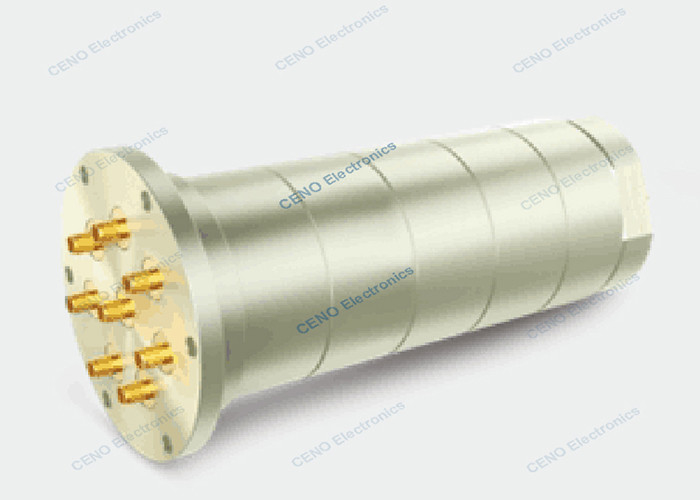

8 Channels Radio Frequency Rotary Joint with RF Signal For Radar Antenna
RCN0806A is CENO new RF Rotary Joint with 8 channels SMA-F for defense systems or combat command system at kinds of levels. It is mainly used in the control and guidance of weapon systems, assisting in air surveillance and reconnaissance, and ensuring accurate navigation and flight safety. Most of CENO RF Rotary joint system products can be customized as customer special application,as the frequency range, channels are optional, and even can be integrate kinds of electric power, signal or data. For more information please contact CENO experts team.
Features
Applications
Optional
Specification
|
RCN0806A |
Specification | ||
| Channels | 1~2 | 3 | 4~8 |
| Interface type | SMA-F(50Ω) | SMA-F(50Ω) | SMA-F(50Ω) |
| Frequency range | 0~8GHz | 0~8GHz | 0~6GHz |
| Average power | 30W | 30W | 30W |
| VSWR, max | 1.5 | 1.6 | 1.6 |
| VSWR WOW, max | 0.1 | 0.1 | 0.1 |
| Insertion Loss, max | 1.4dB | 1.5dB | 1.5dB |
| Insertion loss,wow,max | 0.15dB | 0.15dB | 0.15dB |
| Insulation, min | 70dB | 70dB | 70dB |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
