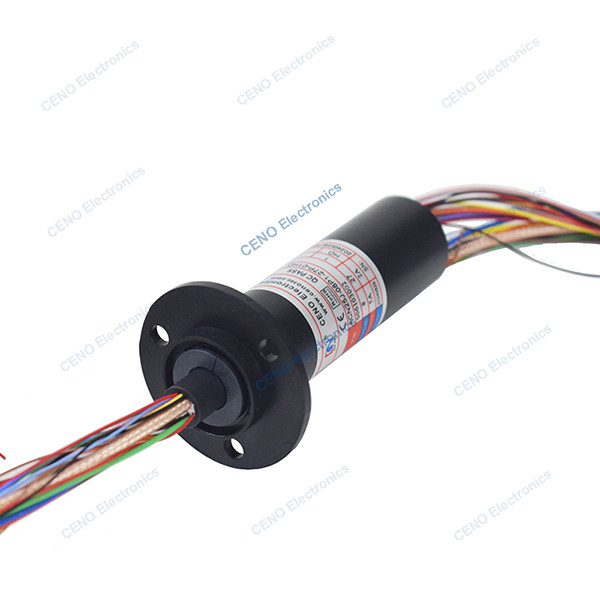

High Definite Capsule Slip Ring with SDI Signal and Electrical Collector
ACN25J-08P1-27P-01HD is High Definite Capsule Slip Ring. Slip Ring Capsule is conductive slip ring with circular flanges attached to the shell. The appearance of the capsule slip ring resembles a hat, with a compact design, small volume and easy installation. CENO capsule slip ring adopts the surface treatment process of the military industry, with ultra hard gold coating treatment, ensuring extremely low resistance fluctuation and long working life. More information please contact us.
Features
- Integrate SDI High definite signal and signals can customize
- Low contact resistance and compact structure
- Flange installation
Applications
- HD Security monitoring
- VR application
- High definition head
- Intelligent robot
- Photoelectric
Optional
- Circuit, Voltage, Current
- Integrate signal / data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
|
ACN25J-08P1-27P-01HD
|
Specification |
| Current & Circuits |
1Circuits * HD-SDI; 35 Circuits * Electric Power Signal |
| Rating Voltage |
2-110 VAC/VDC |
| Dielectric strength |
≥200VAC@50Hz; ≥100VAC@50Hz |
| Isolation resistance |
≥50MΩ@200VDC; ≥10MΩ@100VDC |
| Contact resistance |
≤35mΩ (50rpm) |
| Contact Material |
Gold to Gold |
| Housing material |
Engineering plastic |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP40 |
| Operating speed |
0 ~ 50rpm |
| Outer diameter |
Ø25mm |
| Lead wire size |
Customized |
| Lead wire length |
Customized |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
