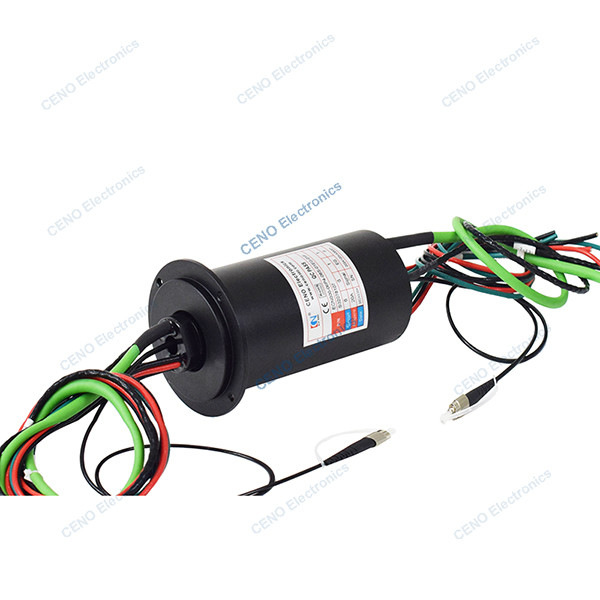

Low Temperatue Integrate FORJs Slip Ring with Fiber Optic Rotary Joint & Ethernet
  • Low Temperatue Integrate FORJs Slip Ring with Fiber Optic Rotary Joint & Ethernet
  • Low Temperatue Integrate FORJs Slip Ring with Fiber Optic Rotary Joint & Ethernet
  • Low Temperatue Integrate FORJs Slip Ring with Fiber Optic Rotary Joint & Ethernet
  • Low Temperatue Integrate FORJs Slip Ring with Fiber Optic Rotary Joint & Ethernet
Low Temperatue Integrate FORJs Slip Ring with Fiber Optic Rotary Joint & Ethernet

Low Temperatue Integrate FORJs Slip Ring with Fiber Optic Rotary Joint & Ethernet

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN000-06P4-06S-01EG-01F
Product Details
Fiber Optic:
1* Single FC
Wavelength:
1310 / 1550nm
Current & Circuits:
6 Circuits * 20A; 1 Group * RS222; 1 Group * 1000M Ethernet Signal
Rating Voltage:
0-220VAC/VDC
Dielectric Strength:
≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation Resistance:
≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact Resistance:
≤30mΩ (50rpm)
Contact Material:
Gold To Gold
Housing Material:
Aluminum Alloy
Working Temperature:
-45°C~+65°C
Working Humidity:
95 %RH
IP Protection Grade:
IP54
Operating Speed:
0~6rpm
Outer Diameter:
Ø66mm
Lead Wire Size & Length:
As Request
Insert Loss:
< 2.0dB
Return Loss:
> 30dB
Insert Loss Deviation:
≤ ±0.5dB
Highlight:

Fiber Optic Rotary Joint Slip Ring

,

Low Temperatue Integrate FORJs Slip Ring

,

Ethernet Integrate FORJs Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Cartons/As request
Delivery Time
1 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

Low Temperatue Integrate FORJs Slip Ring with Fiber Optic Rotary Joint & Ethernet

ECN000-06P4-06S-01EG-01F is CENO new integrate FORJs slip ring which combine single fiber optic rotary joint, electrical power and Ethernet signal for the low temperature environment. Non-contact technology is the advantage of this integrate fiber optic rotary joints, it makes long life and high rotational speed working speed features easier in a series of FORJs, and available in multi / single mode. For more information about how CENO integrate FORJs slip ring can fit your application please contact us.





Features

  • Integrate Electric Power Ethernet signal & FORJs
  • Stable Performance and a variety of functions
  • Install easy & Free maintenance



Applications

  • Photoelectric Pod
  • Video surveillance system
  • Radar system
  • Medical system
  • Remote control system



Optional

  • Voltage, Current & circuits
  • Fiber type and channels
  • Wavelength
  • Working temperature
  • Working speed







Specification

ECN000-06P4-06S-01EG-01F

 Specification
Current & Circuits 6 circuits * 20A; 1 Group * RS222; 1 Group * 1000M Ethernet signal
Rating Voltage 0 ~ 220VAC/VDC
Dielectric strength ≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance ≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance ≤30mΩ (50rpm)
Contact material Gold to gold
Housing material Aluminum alloy
Working temperature -45°C~+65°C
Working humidity 95 %RH
IP protection grade IP54
Operating speed 0~6rpm
Outer diameter Ø66mm
Lead wire size As Customized
Lead wire length As Customized
Rotation Way Flange installation
Fiber optic Parameter
Channel 1
Fiber optic Single
Wavelength 1310 / 1550nm
Insert loss < 2.0dB
Return loss > 30dB
Insert loss deviation ≤ ±0.5dB
Cable length

As Customized
Connect type FC







Outline drawing

Low Temperatue Integrate FORJs Slip Ring with Fiber Optic Rotary Joint & Ethernet 0









CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.



Low Temperatue Integrate FORJs Slip Ring with Fiber Optic Rotary Joint & Ethernet 1
