Wave Guide Slip Ring with 2 channels CPRG187G Radio frequency Rotary Joint

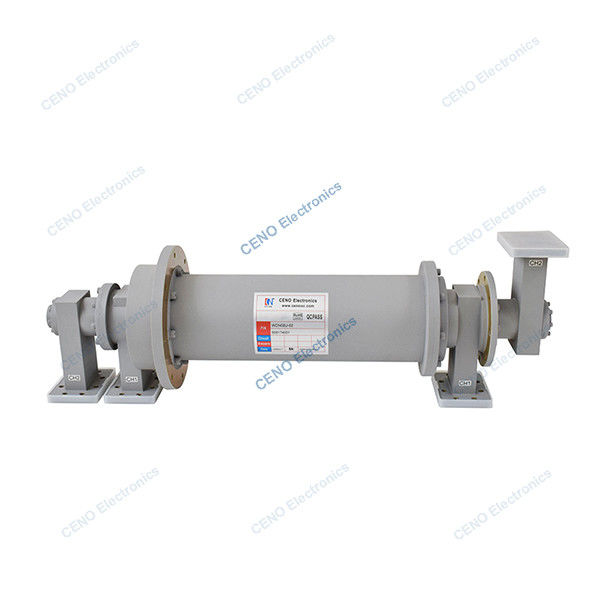

WCN02U-02 is CENO wave guide Rotary Joint with 2 channels CPRG 187G. A wave guide is a structural element used to guide the transmission of high-frequency electromagnetic waves (such as microwaves or millimeter waves), usually a hollow metal tube or dielectric structure. Its working principle is based on the reflection and propagation characteristics of electromagnetic waves within a closed or open boundary. It can efficiently transmit electromagnetic energy in a specific frequency band while reducing transmission loss and radiation leakage.
Specification
| Channel designation |
Channel 1 |
Channel 2 |
| Interface type / material / surface finish |
CPRG 187G / aluminium alloy / chromatized |
CPRG 187G / aluminium alloy / chromatized |
| Frequency range |
4.4-4.5GHz / 4.8-4.9GHz |
4.4-4.5GHz / 4.8-4.9GHz |
| Peak power capability |
250KW /min |
250KW /min |
| Average power capability |
1000KW /min |
1000KW /min |
| VSWR max |
1.25 |
1.25 |
| VSWR variation over rotation, max |
0.1 |
0.1 |
| Insertion loss, max |
0.4dB |
0.5dB |
| Insertion loss variation over rotation, max |
0.1dB |
0.1dB |
| Isolation between |
60dB |
| Operating temperature |
-20℃~55℃ |
| Rotating speed |
10RPM max, Operating 6RPM |
Features
- Efficient transmission of high frequency signal
- Low power consumption and high power capacity
- Electromagnetic interference
Applications
- Automatic machine
- Radar system
- Satellite communication
- Microwave communication
- Medical equipment
Optional
- Frequency range
- Channels
- Insertion loss
- Rating speed
- Working temperature
Outline drawing
