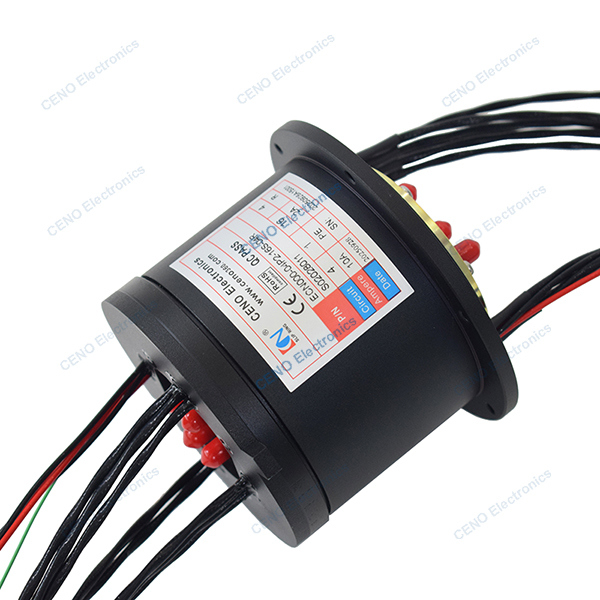

4 Channels RF Rotary Joint combined Electric Power Slip Ring in Low Temperature
ECN000-04P2-16S-04R is CENO integrate slip ring combined circuits electric power and 4 channels radio frequency rotary joint suit for the equipment working in the temperature from -40°C~+85°C. SMA connector type and 0-4GHz frequency range. Fundamental reason for design integrate slip ring is to solve the problem of continuous and reliable transmission of various energy and signals between the stationary and rotating parts. About how CENO integrate slip ring can fit your application please contact us.
Specification
| ECN000-04P2-16S-04R Specification |
| Current & Circuits |
4 circuits * 10A; 1 * PE; 16 circuits * 2A |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave |
≤ 15mΩ |
| Working temperature |
-40°C~+85°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP54 |
| Operating speed |
0~30rpm |
| Outer diameter |
Ø90mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
| Service life |
3 million rotation |
| Lead wire length |
As customized |
| RF Rotary Union |
|
| Channel |
Channel 1 |
Channel 2 - 4 |
| Connector type |
SMA-f (50Ω) |
SMA-f (50Ω) |
| Frequency range |
0~4 GHz |
0~4 GHz |
| SWR (max.) |
1.35 |
1.5 |
| Insertion loss (max.) |
0.6dB |
0.8dB |
| Insertion loss wave (max.) |
0.15dB |
0.15dB |
| Isolation |
60dB |
60dB |
Features
- Integrate design combine power signal and 4 channels RF joint
- Simply system structure & optimize wire & suit low temperature
- Install easy & Free maintenance
Applications
- Defense & aerospace
- High-end industry automation
- Industrial robot
- Satellite communication table
- Medical equipment
Optional
- Circuit, Voltage, Current
- Channels & Frequency range
- Contact / Housing Materials
- Connector type & IP Grade
- Working speed & temperature
Outline drawing
