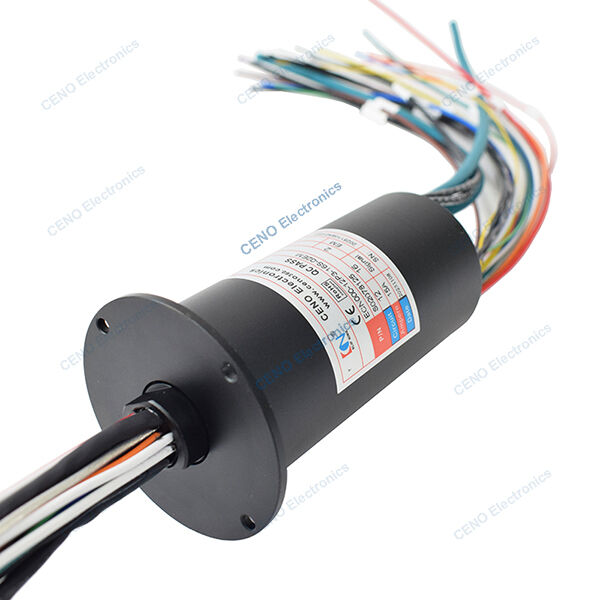

Ethernet Slip Ring combine Electric Power and RS422 Signal for Robotic Arm
ECN000-12P3-16S-02EM is CENO Ethernet signal slip ring with circuits electric power and 2 circuits Ethernet. CENO has series product line, Ethernet signal slip ring is one of them, we developed products for critical applications in military, space, medical and industrial environments. Any more, a wide range of product solutions are offered with combinations of data and power in multiple mechanical configurations to meet your application requirement. For more information please contact us.
Features
- Through hole 3~900mm option
- No electromagnetic interference between current /signal, can mix multiple signal, power or data
- Transmit stably & easy install
Applications
- Industrial robot arm
- Rotating table
- Data centers
- Server rooms
- Security & protection system
Optional
- Circuit, Voltage, Current
- Connectors / IP Grade
- Contact / Housing Materials
- Position of wire outlet
- Working speed & temperature
Specification
| ECN000-12P3-16S-02EM Specification |
| Current & Circuits |
12*15A; 8*Signal; 2*RS422; 2*Ethernet |
| Rating Voltage |
0 ~ 280 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz; ≥500VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@100VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP51 |
| Operating speed |
0~300rpm |
| Outer diameter |
Ø58mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
| Lead wire size & length |
As customized |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
