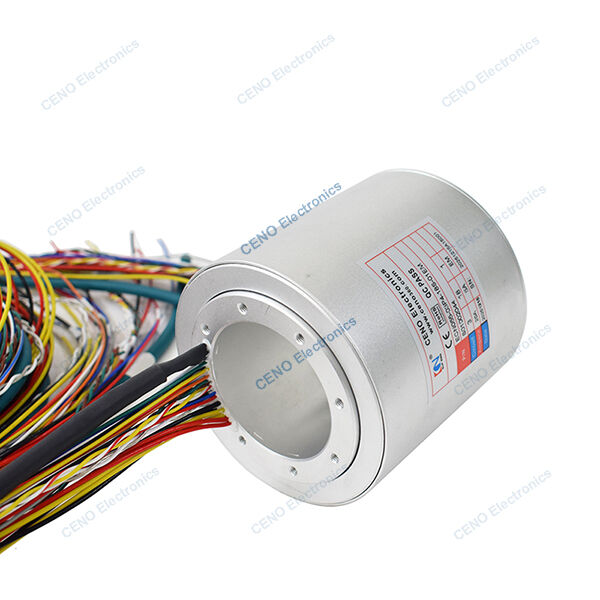

Low Temperature Slip Rings with Through hole Electric Power and Ethernet Signal
ECN055-03P4-18S-01EM is CENO low temperature slip ring with through hole 55mm and combine electric power with Ethernet signal for the equipment working in low temperature from -40°C to +70°C.Low-temperature slip rings refer to electrical slip rings that can maintain stable electrical energy/signal transmission under extreme low-temperature conditions. Often used to cryogenic equipment, polar wind power, and aerospace rotating platforms etc,. More information please contact us.
Features
- Through hole 3mm-980mm optional
- Circuits 1 - 300 circuits are option
- Stable transmitting, no string code, can be integrate various signal /data
- Install easy & Free maintenance
Applications
- Automatic machine
- Turntable testing machine
- Packing equipment
- Filling machinery
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
| ECN055-03P4-18S-01EM Specification |
| Current & Circuits |
3* 20A; 18 * 5A; 1 * 100M Ethernet |
| Dielectric strength |
≥1500VAC@50Hz; ≥500VAC@50Hz |
| Isolation resistance |
≥100MΩ@1500VDC; ≥200MΩ@500VDC |
| Contact resistance wave |
≤ 10mΩ |
| Working temperature |
-40°C~+70°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP54 |
| Operating speed |
0~50rpm |
| Inner diameter |
Ø55mm |
| Outer diameter |
Ø99mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
| Lead wire size & length |
As customized |
| Installation |
Rotor side fixed to main shaft with screws |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
