HDMI Capsule Slip Ring combined Electric Power Ethernet and USB signals

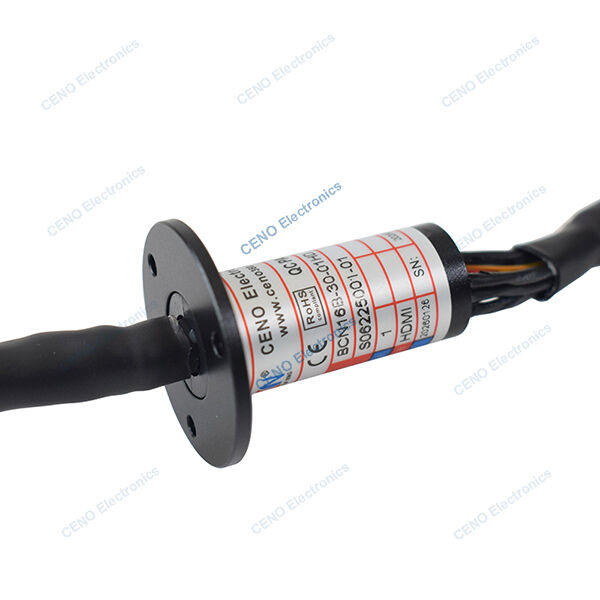

BCN16B-30-01HD is CENO Capsule Slip Ring combined Electric Power, Ethernet, USB and 1 channel HDMI signal. Capsule slip ring are often offered in a compact size with flange like small slip ring, used for electrical power transmission, data transfer between a stationary and a rotating part. They are easily installed and widely used in small and medium-sized equipment, such as speed dome camera, intelligent toys, stage lights and drones, etc. For more information please contact us.
Features
- Compact structure + easy installation
- Integrate Ethernet, HDMI, USB with Power and can be customized
- Stable transmitting, no string code, can be integrate various signal /data
Applications
- Instrument and apparatus
- High speed ball
- Drones
- Video monitoring system
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
| BCN16B-30-01HD Specification |
| Current & Circuits |
2 circuits * 12.5A; 1 * 1000M Ethernet; 1 * USB2.0 Signal; 1 * HDMI Signal |
| Rating Voltage |
0 ~24 VAC/VDC |
| Dielectric strength |
≥300VAC@50Hz |
| Isolation resistance |
≥100MΩ@300VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP52 |
| Operating speed |
0~300rpm |
| Outer diameter |
Ø16mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
| Lead wire size & length |
Customized |
Outline Drawing
