Low Temperature Integrate Power RF Slip Ring with Radio Frequency Rotary Joint

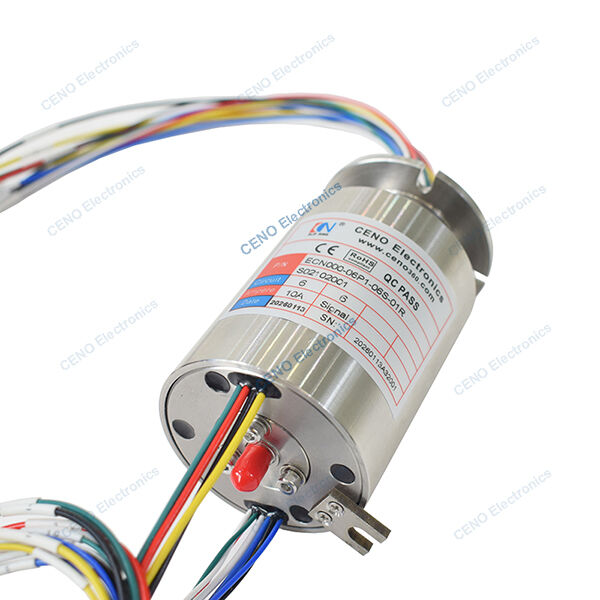

ECN000-06P1-06S-01R is CENO integrate slip ring combine circuits power and 1 channel RF with frequency DC~30GHz that suit for environment from -55°C to +85°C. CENO Integrated Slip Rings are a multi-functional rotary connect solution that highly integrates various transmission modules such as power slip rings, forjs, RF rotary interfaces, and hydraulic/pneumatic channels. They are specifically designed for the simultaneous rotary transmission of electricity, light, signals, and fluids/gases in complex systems. For more information please contact us
Specification
| ECN000-06P1-06S-01R Specification |
| Current & Circuits |
6 * 10A; 6 * Signal |
| Rating Voltage |
0 ~ 240 VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC |
| Contact resistance wave |
≤ 10mΩ |
| Temperature |
-40°C~+70°C(W); -55°C~+85°C (S) |
| Working humidity |
60 %RH |
| IP protection grade |
IP61 |
| Operating speed |
0~60rpm |
| Outer diameter |
Ø56mm |
| Contact material |
Precious Metal |
| Housing material |
Stainless steel |
| RF |
Parameters |
| Channel |
1 |
| Frequency range |
DC-30GHz |
| Power (18GHz) |
20w@18GHz |
| VSWR, max |
1.35@DC~8GHz;
1.75@DC8~18GHz;
2.5@DC18~30GHz
|
| VSWR WOW, max |
0.15 |
| Insertion loss, max |
0.15dB |
| Phase 360 change, max |
1.5dB |
Features
1 Optional RF channels be up to 8
2 Power Circuits 1 - 300 optional
3 Stable performance, variety functions
4 Suit low temperature -55°C~+85°C
5 Install easy & Free maintenance.
Applications
1 Radar Antenna
2 HD Video
3 Satellite earth station
4 Transmission equipment
5 Medical equipment
Optional
1 Circuit, Voltage, Channels
2 Frequency range
3 Structure
4 Protection grade
5 working speed & temperature
