Hybrid Slip Ring with 2 Ethernet channels

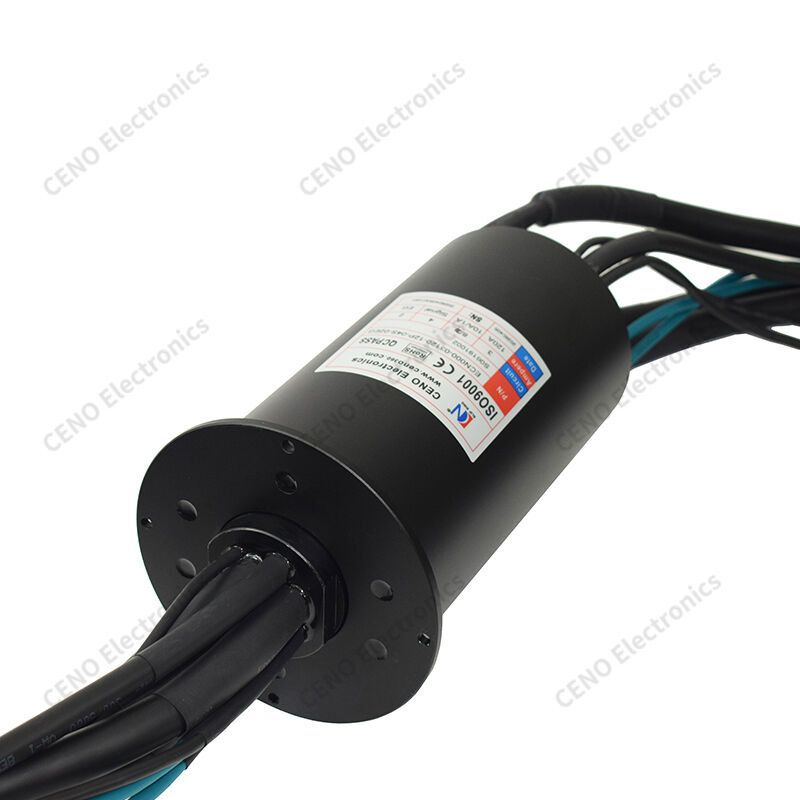

ECN000-03120-12P-04S-02EG is CENO Hybrid Slip Ring integrates 3×120A heavy power circuits, 8×10A auxiliary power, 4×1A signal lines and 2 Ethernet channels to transmit power, control signals and high-speed data during 360° unlimited rotation. Separated power and signal cables effectively reduce electromagnetic interference. Built with anodized aluminum housing and precious metal contacts, it meets CE & RoHS standards for stable long-term heavy-duty rotary industrial operation.
Features
- 120A heavy power
- Power-signal isolation
- Dual Ethernet
- Flange mount
- Solid shaft
Applications
- Heavy rotary jig
- Large rotary platform
- Wind rotary unit
- Power test bench
- Heavy-duty pan-tilt
Optional
- Custom circuits
- Adjustable current
- Custom wire length
- Higher IP grade
- Shielded wiring
Specification
|
ECN000-03120-12P-04S-02EG
|
Specification
|
|
Protection(IP Grade)
|
IP51
|
|
Working Humidity
|
60%RH
|
|
Working Temperature
|
-20℃~+60℃
|
|
Rating Voltage
|
0~72VAC/VDC
|
|
Circuits & Current
|
3 Circuits * 120A(72V);8 Circuits *10A(48V);
4 Circuits *1A(48V);1 Group * CAN bus;
2 Groups * Gigabit Ethernet
|
|
Dielectric Strength
|
≥500vAC@50Hz(Power); ≥300VAC@50Hz(Signal)
|
|
Insulation Resistance
|
500MΩ@500VDC(Power); 100MΩ@300VDC(Signal)
|
|
Electrical Noise
|
Max 20mΩ(50rpm)
|
|
Lead Wire Length
|
Rotor: 1500mm; Stator:1500mm
|
|
Working Speed
|
0~30rpm
|
|
Rotation Way
|
Flange installation
|
|
Contact Material
|
Precious Metal/Gold to gold
|
|
Housing Material
|
Aluminum Alloy
|
Outline drawing
