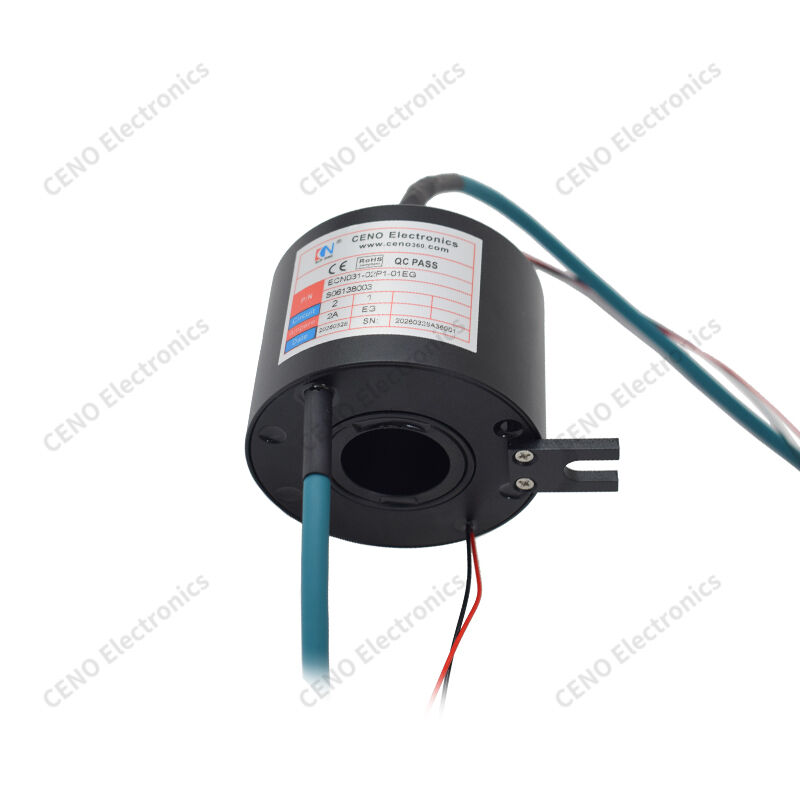

31mm Ethernet Hollow Bore Slip Ring
ECN031-02P1-01EG is CENO Ethernet Through Bore Slip Ring with a 31mm central hollow bore for passing shafts and tubes. It includes 2 power circuits of 2A each and one dedicated Ethernet channel with shielded cable to deliver stable high-speed network signals. A single mounting bracket simplifies installation, precious metal contacts realize uninterrupted 360° rotary power & data transfer, with CE and RoHS certifications for vision and network rotary equipment.
Features
- 31mm through bore
- 2×2A power loops
- Ethernet channel
- Shielded cable
- Single mounting lug
Applications
- Vision rotary platform
- Network PTZ camera
- Rotary inspection jig
- Camera rotary rig
- Robot rotary joint
Optional
- Custom wire length
- Higher current
- Extra Ethernet lines
- Higher IP grade
- Custom cable color
Specification
|
ECN031-02P1-01EG
|
Specification
|
|
Protection(IP Grade)
|
IP51
|
|
Working Humidity
|
60%RH
|
|
Working Temperature
|
-20℃~+55℃
|
|
Lead Wire Size
|
AWG22# Wire Teflon UL CAT6
|
|
Rating Voltage
|
0~220VAC/VDC
|
|
Circuits & Current
|
2 Circuits * 2A; 1 Group * 1000M Ethernet
|
|
Dielectric Strength
|
≥500VAC@50Hz(Power);
≥300VAC@50Hz(Signal)
|
|
Insulation Resistance
|
300MΩ@500VDC(Power);
100MΩ@300VDC(Signal)
|
|
Electrical Noise
|
Max 30mΩ(50rpm)
|
|
Lead Wire Length
|
Rotor: 300mm; Stator:300mm
|
|
Working Speed
|
0~300rpm
|
|
Rotation Way
|
Fix up stator side with anti-rotation side Shaft drives rotor running
|
|
Contact Material
|
Precious Metal/Gold to gold
|
|
Housing Material
|
Aluminum alloy
|
|
Inner Diameter
|
∅31mm
|
Outline drawing
