Ethernet Slip Ring 100Mbps OEM Rotary Connector

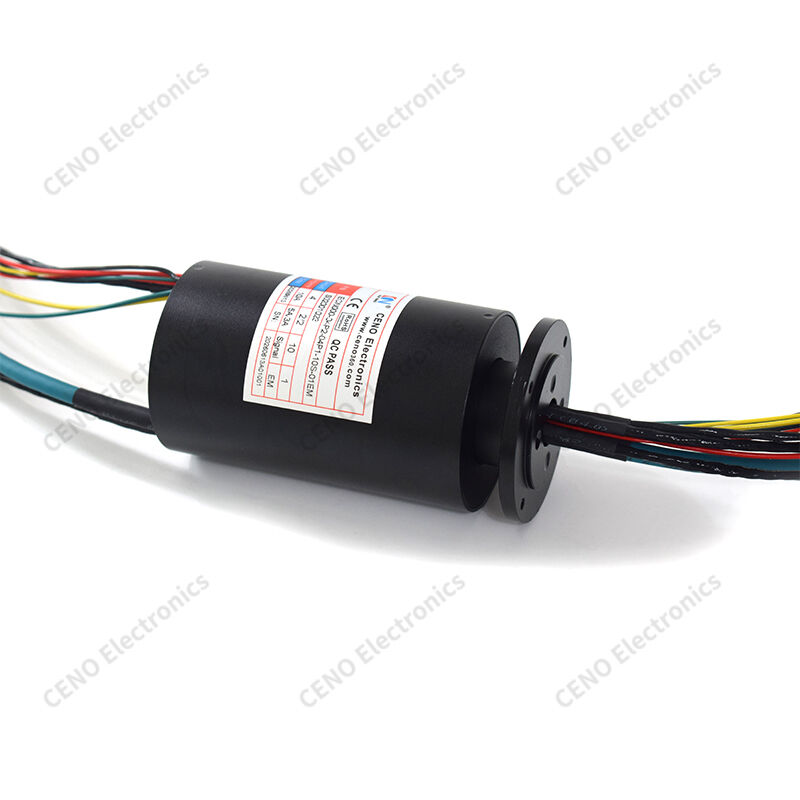

ECN000-04P2-04P1-10S-01EM is CENO flange-mounted Ethernet slip ring adopts precision gold contact assemblies to transmit power, control signals and 100Mbps Ethernet data through continuous 360° rotation. Integrated mounting flange enables direct assembly without extra adapters. Optimized differential wiring preserves impedance matching and minimizes data packet loss. This sturdy rotary data connector passes CE & RoHS inspection and is tailored for bulk OEM orders of medium-speed rotating industrial machinery.
Features
- Flange mounting
- Gold contacts
- Ethernet channel
- Impedance matched
Applications
- PTZ cameras
- Rotary turntables
- Inspection rigs
- Packaging gear
Optional
- Cable length
- RJ45 plugs
- Shield wiring
- Circuit setup
Specification
|
ECN000-04P2-04P1-10S-01EM
|
Specification
|
|
Protection rating
|
IP51
|
|
Operating humidity
|
below 60% RH
|
|
Operating temperature
|
-40°C to +60°C
|
|
Wire specifications
|
AWG17#/22# tinned Teflon, two-core/four-core twisted pair shielded cable (0.2 mm²), CAT6
|
|
Operating voltage
|
0–48 VAC/VDC
|
|
Number of circuits/current
|
4 circuits × 10 A (48 V); 2 circuits × 5 A (24 V);
2 circuits × 3 A (24 V); 1 group × CAN;
1 group × RS422; 1 group × RS485;
1 group × 100 Mbps Ethernet
|
|
Dielectric strength
|
≥500 VAC @ 50 Hz between two circuits
|
|
Insulation resistance
|
≥100 MΩ @ 300 VDC
|
|
Contact resistance fluctuation
|
≤30 mΩ (when operating at 600 rpm)
|
|
Lead length
|
rotor: 500 mm; stator: 500 mm
|
|
Operating speed
|
0–60 rpm
|
|
Mounting method
|
rotor end fastened to the customer-supplied shaft with screws
|
|
Contact material
|
precious metal
|
|
Housing material
|
aluminum alloy, sandblasted and black anodized
|
Outline drawing
